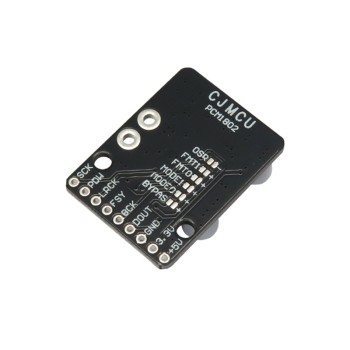

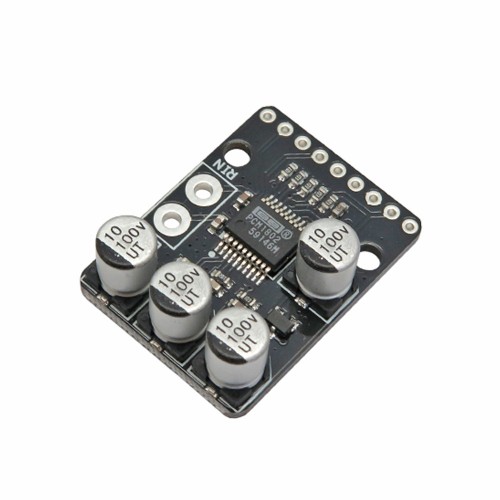

PCM1802 Audio Stereo ADC Module

The PCM1802 is a high-performance, low-cost, single-chip stereo analog to digital converter with single-ended analog voltage input. The PCM1802 uses a delta-sigma modulator with 64-times or 128‑times oversampling, and includes a digital decimation filter and high-pass filter (HPF), which removes the DC component of the input signal. For various applications, the PCM1802 supports master and slave modes and four data formats in serial interface. The PCM1802 is suitable for a wide variety of cost-sensitive consumer applications where good performance, 5-V analog supply, and 3.3-V digital supply operation is required. The PCM1802 is fabricated using a highly advanced CMOS process and is available in the DB 20-pin SSOP package.

24Bit Stereo ADC Decoder Module Application:

1. AV Amplifier Receivers
2. MD Players
3. CD Recorders
4. Multitrack Receivers
5. Electric Musical Instruments

24Bit Stereo ADC Decoder Module Specification:

1. 24-Bit Delta-Sigma Stereo A/D Converter
2. Single-Ended Voltage Input: 3 VP–P
3. Antialiasing Filter Included
4. Oversampling Decimation Filter
5. Oversampling Frequency: ×64, ×128
6. Pass-Band Ripple: ±0.05 dB
7. Stop-Band Attenuation: –65 dB
8. On-Chip High-Pass Filter: 0.84 Hz (44.1 kHz)
9. High Performance
10. THD+N: 96 dB (Typical)
11. SNR: 105 dB (Typical)
12. Dynamic Range: 105 dB (Typical)
13. PCM Audio Interface
14. Master and Slave Mode Selectable
15. Data Formats: 24-Bit Left-Justified; 24-Bit I2S;
16. 20-bit or 24-Bit Right-Justified
17. Sampling Rate: 16 kHz to 96 kHz
18. System Clock: 256 fS, 384 fS, 512 fS, 768 fS
19. Dual Power Supplies: 5 V (Analog), 3.3 V (Digital)
