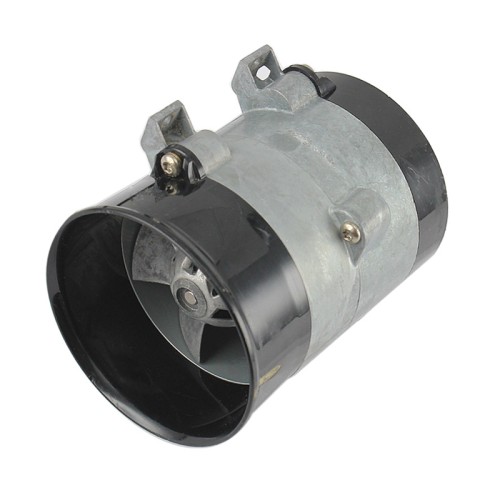

12V Inline High Speed Metal Duct Fan

This Product is Used.

In order to operate this fan, you will need a brushless motor driver along with a servo tester. You can obtain it through below links.

Servo Tester Module

40 Amp Speed Controller for Brushless Motors

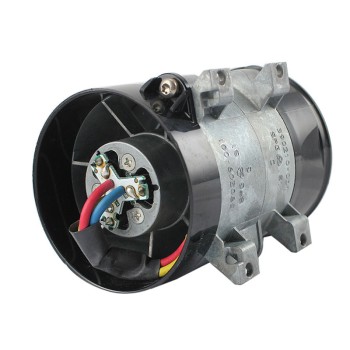

The Duct Fan Motor consists of a circular duct with a DC Brushless Duct Fan Motor or brushed motor at its center. The motor's shaft holds a propeller with short blades, generating thrust for model flying.

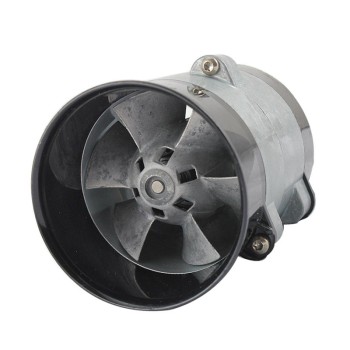

This Metal Duct Fan operates at 12V, with metal blades of 70mm diameter and a KV rating of 3100. The metal housing ensures high durability and strength. DC Brushless Duct Fan Motor designs are efficient and reliable.

Startup Guide:

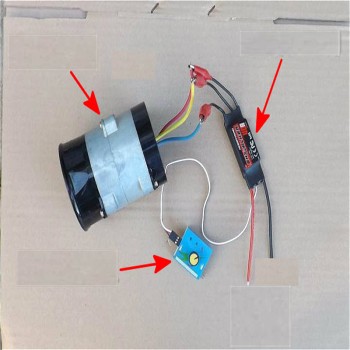

After connecting the duct fan wires and driver as shown, follow these steps:

1. Set the driver volume to max before connecting the power supply.

2. Turn on the power supply.

3. Set the driver volume to min.

4. Wait for the driver beep.

5. After hearing the beep, the Brushless Duct Fan Motor will start.

Repeat these steps for each use of the Metal Duct Fan.

Applications of the Duct Fan Motor

1. Aerodynamic hovercrafts
2. Vacuum cleaners
3. Modeling
4. Turbo fans for automobiles

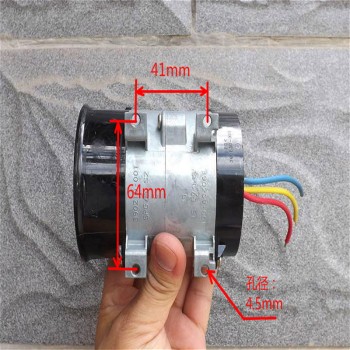

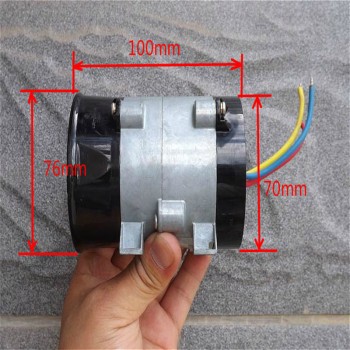

Specifications of the Duct Fan Motor

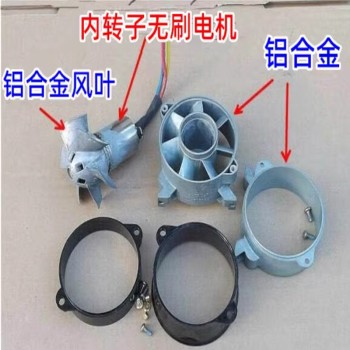

1. Material: plastic and aluminum alloy
2. Temperature tolerance: Up to 170°C
3. Motor length: 10 cm
4. Inlet diameter: 70 mm
5. Inlet diameter with edge: 76 mm
6. Operating voltage: 7.4 to 16.8V
7. Maximum power: 380W
8. KV value: 3100
9. Weight: 520g
10. Number of fan blades: 6
11. Rotation speed: Approximately 15,000 RPM
12. Current: 16.5A
