2 PCS XL6009 Step Up Regulator Module [DC-DC] [4A]

2 PCS XL6009 Step Up Regulator Module [DC-DC] [4A]
  • Product Code:SQ1431
  • Availability: In Stock
  • $1.50
  • Ex Tax:$1.50
This product has a minimum quantity of 5

Tags: DC DC, Power Converter Module, Boost Converter, XL6009, Step Up Regulator, DC DC Adapter

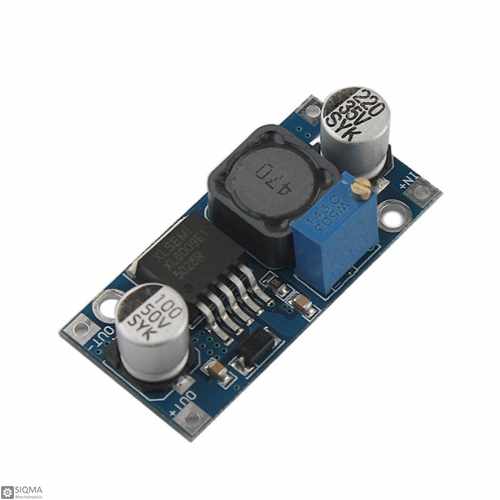

 XL6009 Adjustable Step-Up Regulator Module [DC-DC] [4A] is an adjustable DC-DC step-up switching adapter with 4A high current and excellent line and load regulation, which is based on XL6009 4.0 A, Step-Up Switching Regulator chip. The XL6009 chip is a boost converter and an easy solution to build a step-up voltage regulator. This chip has high efficiency (about 94%) and a wide range of 3-32 voltage regulating either direct or reverse polarity. Thus it can be configured in a boost, flyback, SEPIC or inverting manner. This converter chip is a switching mode power supply with the 400KHz switching speed. This ultra-high switching frequency results in reducing the size of filter components and output ripples. Due to the high switching frequency, this module is optimized to work with a very small inductor and capacitor with small ripple.
This regulator is designed to minimize the number of external components to simplify the power supply design. This adapter can be used as a post regulator for DC adaptors and power supplies, solar cells, wind turbines car batteries, battery charger or even an LED current source. This regulator is equipped with a precision multiturn potentiometers to accurately adjust both the output voltage and current.
This adapter board can supply with a car battery or cigaret ignition port to regulate car voltage, then adjust through the multi-turn potentiometer for supplying the laptops, TV boxes, PSP, lighting lamps, and so on, in traveling, camping and car driving situation. Also, it can be used in the automotive voltage regulator, photovoltaic solar power generation, wind energy applications, and other voltage instabilities.

Model: XL6009 boost module
Module Properties: non-isolated step-up (BOOST)
Rectification: Non-Synchronous Rectification
Input Voltage: 3V ~ 32V
Output Voltage: 5V ~ 45V
Output Current: 4A (max)
Conversion efficiency: <94%
Switching Frequency: 400KHz
Output ripple: 50mV
Load regulation: ± 0.5%
Voltage regulation: ± 0.5%
Working temperature: -40 ℃ ~ +85 ℃
Size: 43mm x 21mm x 14mm

Package Include:
2 x DC-DC XL6009 4A Step Up Module

Electrical Parameters
Frequency 400KHz (Switching Frequency)
Input Voltage 3V - 32V
Output Current 4A (max)
Output Voltage 5V - 35V
Board Parameters
Main Chip XL6009
Physical Parameters
Operating Temperature -40 ℃ ~ +85 ℃
Size 43mm x 21mm x 14mm
