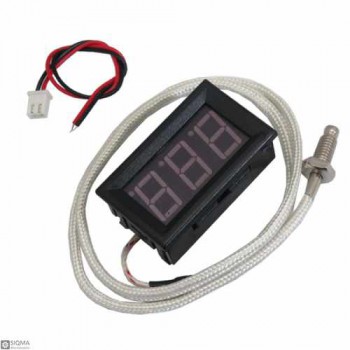

XH-B310 K-Type Digital Thermometer with LED Display and 12V Operation

XH-B310 K-Type Digital Thermometer with LED Display and 12V Operation
Click image for Gallery
  • Product Code:SQ8923
  • Availability: 1000
  • $2.99
  •
  • Ex Tax:$2.99

Available Options

This product has a minimum quantity of 2
+
-


Tags: thermocouple meter, XH-B310, K type thermometer, digital thermometer, LED temperature meter, industrial thermometer

The XH-B310 is a digital temperature meter designed to read K-type thermocouples and display the measured value on a bright red LED seven-segment display. Thermocouples generate a small voltage that changes with temperature, and this industrial thermocouple reader converts that voltage into a temperature reading across a wide range of -30°C to 800°C. With a measurement accuracy of ±0.3°C and a refresh rate of four times per second, the XH-B310 provides responsive and reliable readings for processes that require continuous monitoring. The meter operates from a 12V DC supply and is housed in a compact panel-mount enclosure measuring 48mm by 29mm by 23mm, with a 35mm by 18mm display window that is easy to read from a distance. This 12V LED thermometer is commonly used in greenhouses and poultry farms for climate control, in industrial automation panels, and in ovens, stoves, and furnaces where high-temperature measurement is essential. The K-type thermocouple input uses an M6 threaded probe connection, and the meter is designed for panel mounting with a 45.5mm by 26mm cutout. Because the XH-B310 reads temperatures up to 800°C, it is suitable for both low-temperature environmental monitoring and high-temperature industrial processes. The bright red display remains legible in dimly lit control cabinets, and the simple two-wire power connection simplifies installation in retrofit and new-build systems. Whether used as a standalone temperature indicator or as part of a larger control loop, this -30 to 800 temperature gauge offers a practical combination of wide range, fast refresh, and panel-friendly packaging.

Application

  1. Greenhouse climate control and temperature monitoring
  2. Poultry farm heating and ventilation automation
  3. Industrial automation panels and process control
  4. Oven, stove, and furnace temperature indication
  5. Kiln and high-temperature process monitoring
  6. Panel-mount temperature displays for retrofit installations

Specifications

  1. Model: XH-B310
  2. Thermocouple type: K type (M6 thread)
  3. Temperature measurement range: -30°C to 800°C
  4. Measurement accuracy: ±0.3°C
  5. Refresh rate: 4 times per second
  6. Supply voltage: 12V DC
  7. Display type: red LED seven-segment
  8. Display window size: 35mm × 18mm
  9. Module dimensions: 48mm × 29mm × 23mm
  10. Panel cutout: 45.5mm × 26mm
  11. Operating temperature (module environment): -40°C to +65°C (per Electropeak reference)
  12. Mounting: panel mount
Sensor Parameters
Accuracy ±0.3℃
Output Type Digital
Temperature Range -30℃ ~ 800℃
Electrical Parameters
Input Voltage 12V
Physical Parameters
Size 48mmx 29mm x 23mm
Color black (Case) ; blue, red, green (optional desplay color)
