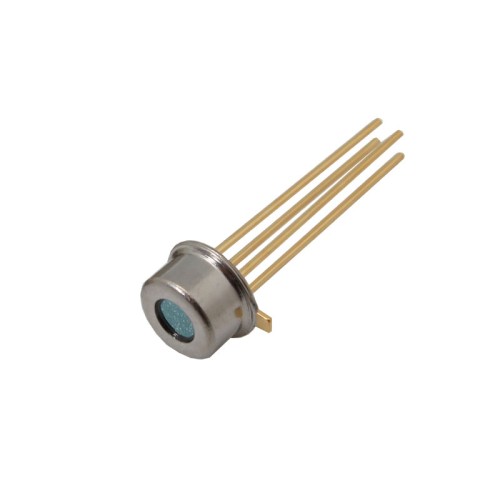

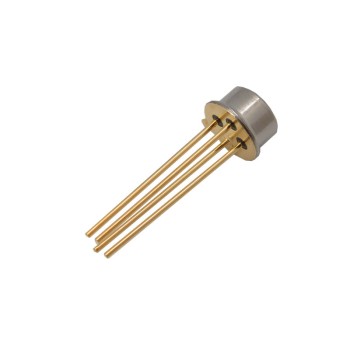

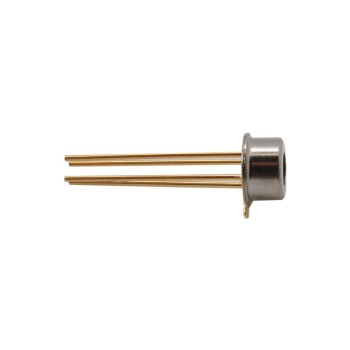

XGZT263 Non-contact temperature sensor

the non-contact temperature sensor xgzt263 can measure the surface temperature of objects by measuring infrared radiation from their surface, and the higher the surface temperature, the more infrared energy it emits. the xgzt263 temperature sensor is a thermopile and is one of the non-contact sensors. this means it can measure physical objects from a distance, even several meters away. the thermopile sensor xgzt263 is made up of several small thermocouples on a chip that absorb energy and produce an output signal. the temperature sensor xgzt263 is designed in a t0-46 package and has dimensions of 1.1 by 1.1 millimeters, with a sensitive area measuring 0.76 x 0.76 mm. thermopiles are used in a wide range of applications, from monitoring industrial processes to measuring occupancy and movement, as well as for medical temperature readings such as ear thermometers.

application of XGZT263 Thermopile Sensor:

1. non-contact temperature measurement equipment
2. home appliances such as microwave, fire alarm, and heating
3. cooling and heating control equipment
4. medical and hospital equipment

specifications XGZT263 Temperature sensor:

1. sensor model: xgzt263
2. sensor type: non-contact

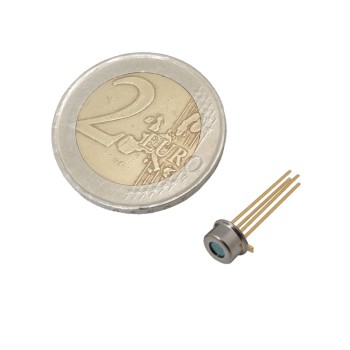

3. sensor size: 1.1 x 1.1mm
4. sensitive area: 0.76 x 0.76mm
5. noise voltage: 46 nv/hz
6. ntc: 100 ± 3% kω 25℃
7. packaging: to-46
8. operating temperature: -30 ~ 100°c
