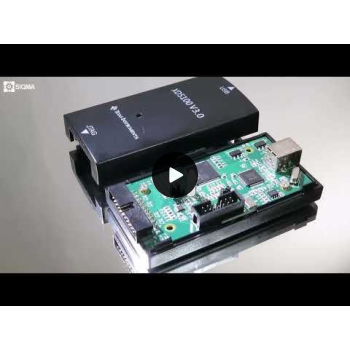

XDS100v3 Programmer and Emulator for ARM and DSP Microcontrollers

The XDS100 Series Emulator from TI (Texas Instruments) is designed and built on a USB hardware system, communicating with other devices via JTAG.

The XDS100v3 Emulator, the third-generation XDS100v3 Programmer, is compatible with a wide range of debug chips and supports a high-speed USB2.0 interface with a data transfer rate of 480 Mbps.

This JTAG Programmer is ideal for signal processing systems, embedded systems, and ARM-based applications.

Applications of the XDS100v3 Programmer

1. DSP and Signal Processing
2. ARM-Based Systems
3. Embedded Systems
4. Debugging and Programming

Specifications of the JTAG emulator

1. High-Speed USB2.0 Interface: Up to 480 Mbit/s
2. JTAG with ESD Protection: ±15KV
3. Power Loss Detection: Supported
4. JTAG Voltage Support: 1.8–5V
5. JTAG Interface Compatibility: 14-pin and 16-pin
6. Easy Two-Wire JTAG Connection
7. Operating System Support: Windows XP/7/8/10 and Linux
8. Supported Microcontrollers: ARM models including TMS320C28xx, TMS320C54xx, TMS320C55xx, TMS320C674x, TMS320C64X+, TMS320C66x, ARM9, ARM Cortex M0/M3/M4/A8/A9/A15/R4/R5, TMS470LSxx, TMS570LSxx, Davinci, Zigbee (32-bit) CC26xx series

Documents:

XDS100v3 Emulator Datasheet

Comparison of XDS100 Series Emulators
