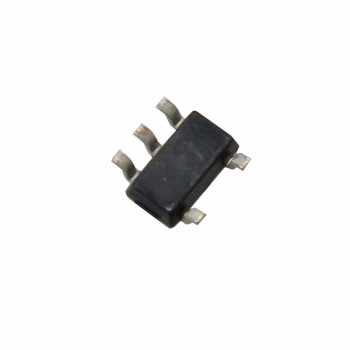

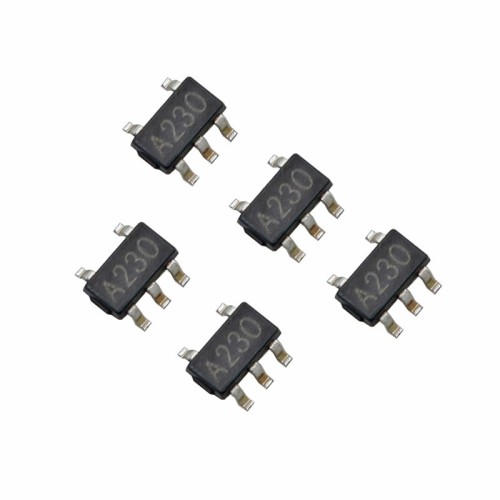

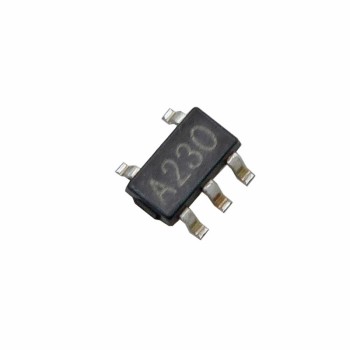

XC6209B332MR IC regulator SOT23-5 package

the xc6209b332mr voltage regulator ic features high accuracy and low noise susceptibility, utilizing cmos technology in its design. the input voltage for this regulator ranges from 2 to 10 volts and can provide a stabilized output voltage between 0.9 to 6 volts. the output current of this chip is up to 150ma and it also has short-circuit protection. by using ceramic capacitors with low esr alongside this regulator, you can achieve greater voltage stabilization.
this chip comes in a sot23-5 package, which we detail below:
1: vin
2: vss
3: ce
4: nc
5: vout

applications of XC6209B332MR Voltage stabilizer chip:

1. smartphones / mobile phones
2. portable game consoles
3. digital cameras / camcorders
4. digital audio equipment
5. voltage sources
6. multifunction power supplies

specifications of XC6209B332MR regulator IC 6V:

1. type: cmos
2. input voltage: 2vdc ~ 10vdc
3. output voltage: 0.9vdc ~ 6vdc
4. output current: 150ma
5. operating temperature range: -40℃ ~ +85℃
6. package: sot23-5

Documents:

datasheet of the regulator xc6209b332mr
