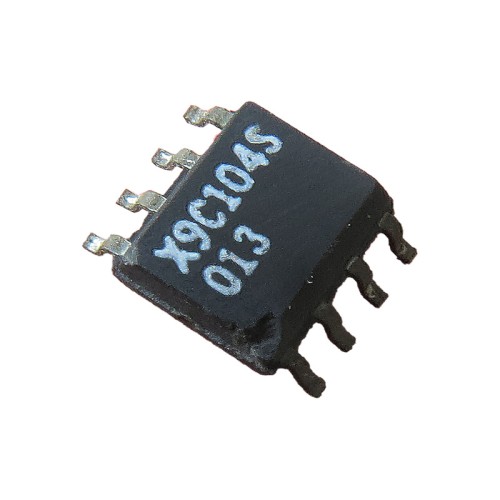

X9C104S Potentiometer IC SOP8 Package

the X9C104S Digital potentiometer has the capability to maintain the potentiometer’s level for us for up to 100 years and uses an eeprom in its structure, meaning that if the power supply is interrupted, it will continue from where it left off, which is excellent. the connection of the 100 kω potentiometer ic x9c104s is done through a serial port and three pins. the cs pin is used for command purposes, and if it is 0, it means it is ready to receive, and after it becomes 1, our potentiometer level is saved; of course, we must pay attention to the timing table in the datasheet. the ud pin specifies the movement of the wiper, just like a 3-pin potentiometer; it can either go up or down, which is the same as left and right in rotary knobs. the inc pin is also used to receive pulses for changing the electronic resistance.

application of the X9C104S 100k ohm potentiometer IC:

1. computer-controlled systems
2. digital parameter adjustment
3. data storage

specifications of X9C104S Potentiometer IC SOP8 Package:

1. operating voltage: 5 volts
2. resistance: 100 kilo ohms
3. voltage range: -5 to 5 volts
4. interface pins: cs, u/d, inc
5. resistance mode: incremental
6. operating current: 3 milli amperes
7. package: 8sop
8. operating temperature: -40~85'c

Documents:

datasheet of ic x9c104s sop8
