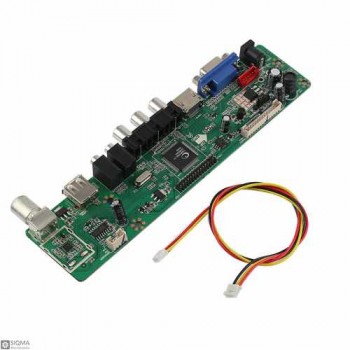

V59 LCD TV Driver Board

V59 LCD TV Driver Board
  • Product Code:SQ2337
  • Availability: In Stock
  • $13.30
  • Ex Tax:$13.30

Tags: V59 Driver, HDMI, VGA, TV Controller, LVDS LCD, HDVX9, AV

The V59 LCD TV Driver Board (LA.MV9.P) can be used to drive an LCD panel and control it. The board support AV / HDMI / VGA inputs. It has an internal TV tuner. The board supports USB interface to write and upgrade the program.
Burning method: In order to write the program in the USB flash disk, Insert the USB flash disk into the board, then plug in the keypad, electricity. A few seconds later, press the keypad which will make the lights start alternating red and green flashs, flash lights indicate begining the process of writing the program (please do not power off), light flashes slowly in the start, but after a few slow flashes, it will speed up the the flashing until the lights stop flashing and that's when the program is fully written. Not only the USB interface can be used to upgrade the internal program, but it can also be used to play videos, by the formats that are supported by this device. You can also set a boot display picture or LOGO.

Model: HDVX9-CS V2.0
Input Interface: PC / VGA / HDMI / TV / USB multimedia playing
Voltage: Single 12 V
Screen interface: LVDS Single 6 / 8, Double 6 / 8 (10 inch to 42 inches)
Voltage for Panel:3.3V/5V/12V
Resolution: Support high screen 1920 x1080 / 10~42 inch LVDS screen

For any resolution of your panel, You must download bin file of the same resolution.

Package Includes:
1 x TV driver board
1 x remote control plus receiver
1 x 3Pin cable

Electrical Parameters
Voltage DC 12V
Board Parameters
Main Chip V59
Physical Parameters
Weight 132g
Ports And Jumpers
Video Input PC / VGA / HDMI / TV / USB
Video Output LVDS (Single / Double)
