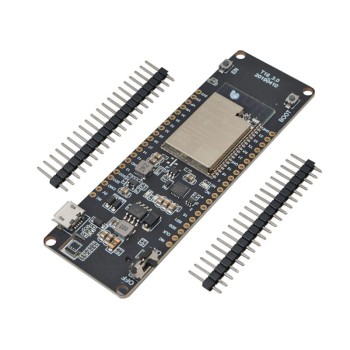

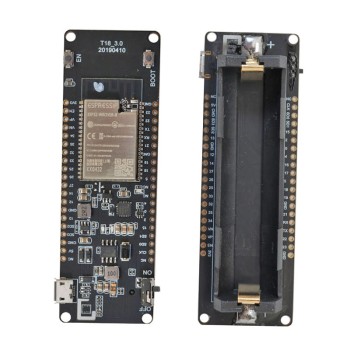

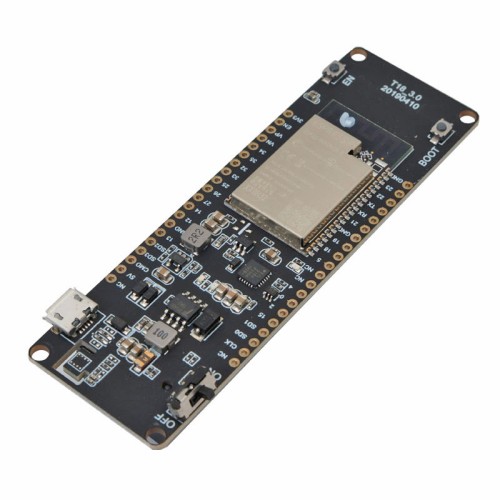

T18-Energy Bluetooth and Wi-Fi Ver3.0 Module with ESP32 Processor

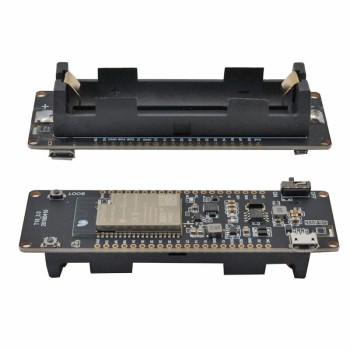

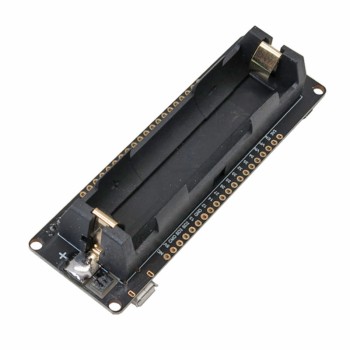

The T-ENERGY TTGO Module, part of the TTGO board series, features the T-Energy Bluetooth and Wi-Fi Module with ESP32 Processor and includes a built-in 18650 battery holder. The ESP32 chip, developed by Espressif, is the newer, well-known successor to the ESP8266, offering both Wi-Fi and integrated Bluetooth connectivity. It boasts very low power consumption, an excellent design, and delivers strong performance in industrial environments.

The ESP32 chip includes built-in Bluetooth and Wi-Fi, a 32-bit Tensilica Xtensa LX6 processor running at 240 MHz with a performance of 600 DMIPS, and supports an Ultra Low Power Co-Processor. This allows you to read analog values via its ADC even in Deep Sleep mode.

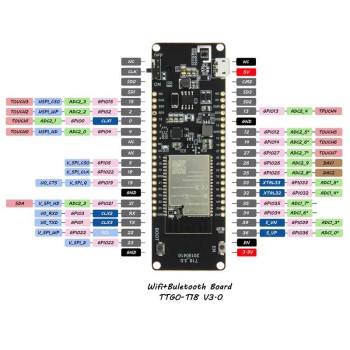

The T-ENERGY Bluetooth and Wi-Fi Module on the T-ENERGY TTGO Module provides multiple common communication ports such as UART, I2C, ADC, SPI, and DAC. Additionally, an onboard LED indicates charging status and module operation.

Applications of the T-Energy Bluetooth and Wi-Fi Module

1. Internet of Things (IoT) projects
2. Portable electronic devices

Specifications of the T-Energy Bluetooth and Wi-Fi Module

1. Chipset: ESPRESSIF-ESP32-WROVER, 240 MHz Xtensa® single-/dual-core 32-bit LX6 microprocessor
2. Flash Memory: QSPI flash/SRAM up to 32 MB
3. SRAM: 520 KB
4. Control Buttons: Reset and BOOT
5. Power Indicator: Red LED
6. USB to TTL Converter: CP2104
7. Modular Interfaces: SD card, UART, SPI, SDIO, I2C, LED PWM, TV PWM, I2S, IRGPIO, capacitive touch sensor, ADC, DAC, LNA pre-amplifier
8. On-board Clock: 40 MHz crystal oscillator
9. Operating Voltage: 2.3 V – 3.6 V
10. Operating Current: Approximately 40 mA
11. Sleep Current: 1 mA
12. Operating Temperature Range: -40°C to +85°C

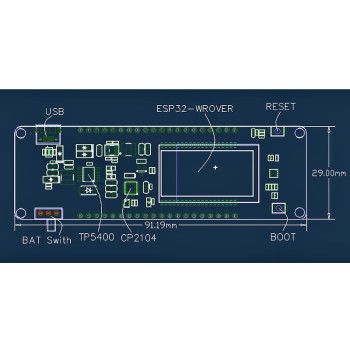

13. Dimensions: 91.10 mm × 32.75 mm × 19.90 mm
14. Power Supply: USB 5 V / 1 A
15. Charging Current: 1000 mA
16. Battery Support: 3.7 V lithium battery 18650
17. Wi-Fi Protocols: 802.11 b/g/n/e/i (802.11n speeds up to 150 Mbps)
18. Frequency Range: 2.4 GHz – 2.5 GHz
19. Transmit Power: 22 dBm
20. Communication Range: Up to 300 meters
21. Bluetooth Protocols: Bluetooth v4.2 BR/EDR and BLE standard
22. Radio Frequency Sensitivity: -98 dBm
23. Wi-Fi Modes: Station, SoftAP, SoftAP + Station, P2P
24. Security: WPA, WPA2, WPA2-Enterprise, WPS
