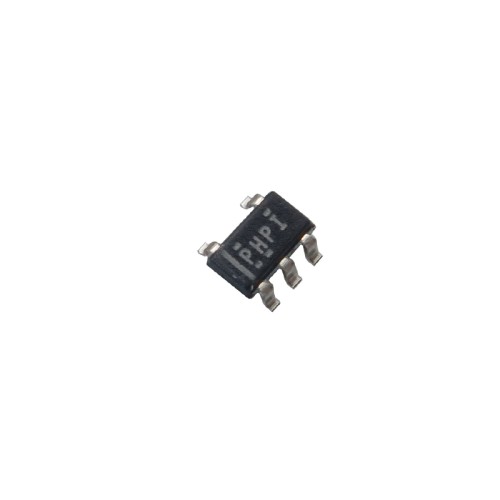

TPS61041 Boost regulator IC

regulators are essentially ics that each have an input and an output. regulators can have one input and one or more outputs. a step-up regulator of dc-dc voltage is also called a boost circuit, in which the input voltage is greater than the output. the ic tps61041 is a high-frequency boost converter used for power supplies and display modules. the switching frequency or voltage booster is one megahertz and provides a maximum output voltage of 18 volts with a minimum input voltage of 1.8 volts and a maximum of 6 volts.

application of the TPS61041 Boost regulator IC:

1. power supply for lcds
2. led backlights
3. video cameras
4. smartphones
5. audio players
6. voltage converters from 3 and 6 volts to 12 volts

specifications of tps61041 voltage regulator:

1. input voltage: 1.8 ~ 6 volts
2. output voltage range: adjustable up to 28 volts
3. internal switch current: 250 milliamps
4. switching frequency: maximum 1 mhz
5. includes internal soft-start
6. dimensions: 0.8 × 2 × 2 millimeters

Documents:

data sheet tps61041-boost
