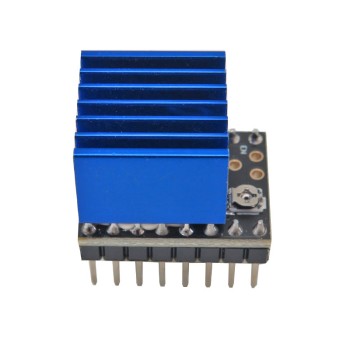

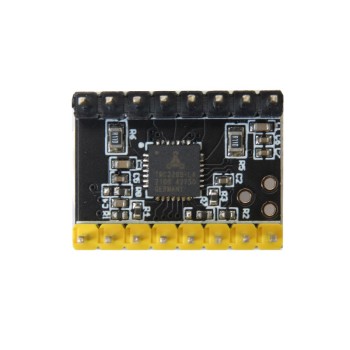

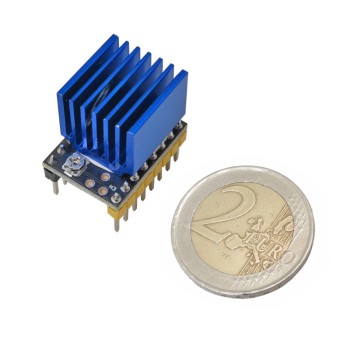

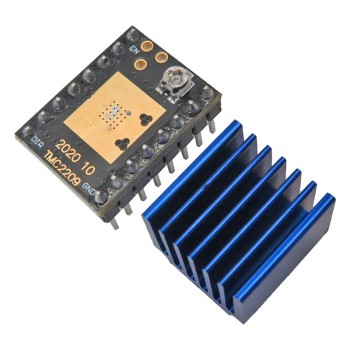

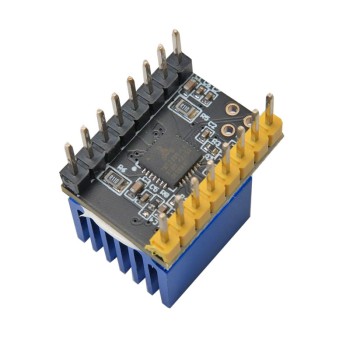

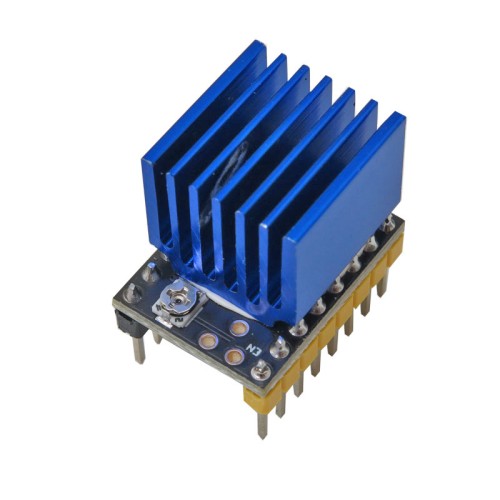

TMC2209 Stepper Motor Driver Module

The TMC2209 Stepper Motor Driver Module combines unique TRIAMINIC technology, resulting in a silent and highly precise driver. With an internal frequency of 12.5 MHz, the module includes UART for serial data transfer and offers high-precision steps, up to 1/256 microstepping, adjustable in 9 different steps. The TMC2209 Stepper Driver is a cost-effective, reliable module that delivers similar performance to the A4988 but with reduced noise and smoother motor operation. Powered through the VIO and GND pins, the TMC2209 Driver connects to a microcontroller, with four output pins for the stepper motor's two-phase connections.

Applications of the TMC2209 Driver

1. 3D printers
2. Home automation
3. Robotics
4. ATM machines
5. Security applications
6. Printers and scanners
7. Textile industry

Specifications of the TMC2209 Driver

1. Operating Voltage: 4.75V – 28V
2. Maximum Clock Frequency: 12.5 MHz
3. Maximum Current per Phase: 2A
4. Peak Output Current: 2.8A
5. Designed for Bipolar Stepper Motors
6. Adjustable STEP/DIR interface with 8, 16, 32, and 64 microstepping options
7. Single-wire UART communication with microcontrollers
