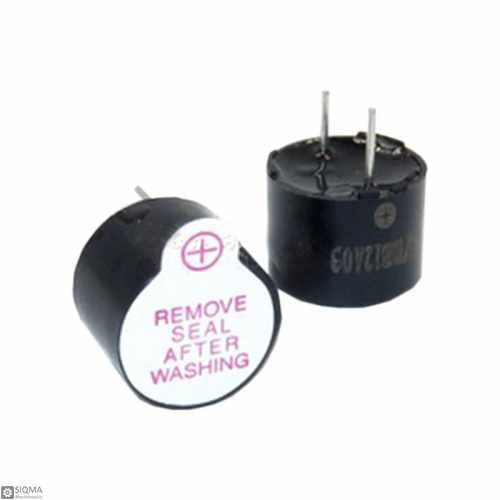

10 PCS TMB12A03 Active Buzzer [2.3KHz]

10 PCS TMB12A03 Active Buzzer [2.3KHz]
Click image for Gallery
  • Product Code:SQ5306
  • Availability: 10000
  • $0.99
  • Ex Tax:$0.99
This product has a minimum quantity of 8

Tags: Active Buzzer, Buzzer Speaker, Buzzer Alarm, TMB12A03, 2300Hz Buzzer

TMB12A03 Active Buzzer [2.3KHz] beeps at a predefined frequency (2300 ±300 Hz) on its own even when you just apply steady DC power. You can still produce a sound from the buzzer connected to a microcontroller, such as an Arduino, by just driving a standard high output on the connected pin, so you don't need to use processing power, hardware timers, or additional code to produce sound.

Model: TMB12A03
Working voltage: 3VDC
Input voltage: 1.5 ~4VDC
Sound Pressure Level (SPL): 85dB (at 3V, 10Cm)
Frequency: 2300±300Hz
Diameter: 12mm
Height: 9.5mm
Pitch: 7.6mm

Package Include:
10 x TMB12A03 Active Buzzer

Electrical Parameters
Input Voltage 1.5VDC~4VDC
Voltage 3V
Physical Parameters
Height 9.5mm
Diameter 12mm
Pitch 7.6mm
Sound Parameters
Frequency 2300±300Hz
SPL 85dB (at 3V, 10Cm)
