10 PCS THDZ-1745 Passive Piezoelectric Buzzer [4KHz]

10 PCS THDZ-1745 Passive Piezoelectric Buzzer [4KHz]
  • Product Code:SQ6725
  • Availability: In Stock
  • $1.20
  •
  • Ex Tax:$1.20
This product has a minimum quantity of 6
+
-


Tags: Passive Buzzer, Buzzer Speaker, Buzzer Alarm, THDZ1725, Piezoelectric Buzzer

Description:

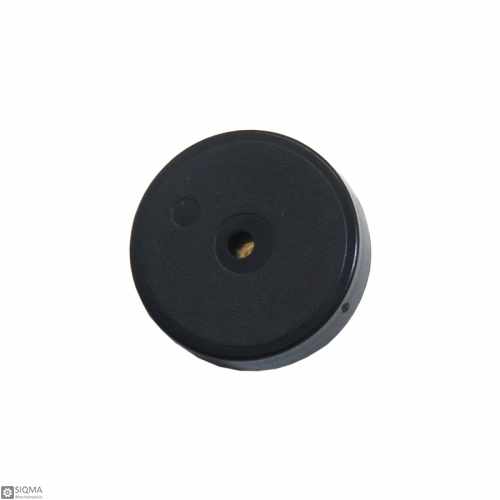

THDZ-1745 Passive Piezoelectric Buzzer [4KHz] is a small 17mm round passive buzzer that sounds around the audible 4kHz range. It can be driven directly from a 3v to 5V Arduino or microcontroller to generate simple melody. The buzzer leads are terminated with male pin. By applying a DC voltage, It can't generate any sound.

Features:
Rated Voltage (Square Wave): 5~12Vp-p
Operating voltage: 1~30Vp-p
Rated Current (MAX): 24mA
Sound Pressure Level (SPL): 75~85 dB (at 10Cm)
Resonant Frequency: 4KHz
Operating Temperature: -20°C ~ +70°C
Diameter: 17mm
Thickness: 4.5mm

Note:
This passive buzzer requires a square wave (PWM) signal to make a sound or to play melodies. The frequency of this PWM signal will determine its sound tone.

Package Include:
10 x THDZ-1745 Piezoelectric Passive Buzzer

Electrical Parameters
Operating Voltage 1~30 Vp-p
Current 24mA
Physical Parameters
Operating Temperature -20°C ~ +70°C
Thickness 4.5mm
Diameter 17mm
Sound Parameters
Frequency 4KHz
SPL 75~85 dB (at 10Cm)
Environmental Conditions and Safety
Operating Temprature -20°C ~ +70°C
