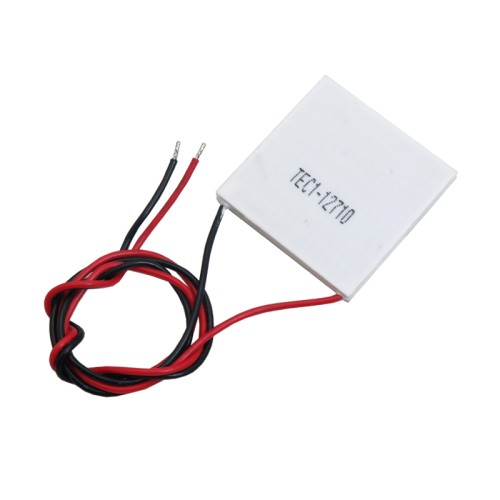

3 PCS TEC1-12710 Thermoelectric Cooler

3 PCS TEC1-12710 Thermoelectric Cooler
Click image for Gallery
  • Product Code:SQ2613
  • Availability: 10000
  • $7.40
  •
  • Ex Tax:$7.40
+
-


Tags: TEC1 12710, Thermoelectric Cooler, Semiconductor Cooler, 12V Cooler, Thermoelectric Peltier, TEC Thermoelectric

Description:
3 PCS TEC1-12710 Semiconductor Thermoelectric Peltier Cooler [12V, 10A] package contains 3 pieces of 9A thermoelectric coolers. The thermoelectric cooler also is known as TEC or Peltier cooler, is an active semiconductor part, which enables to give heat on one side and get the heat on another side, results in differential temperature on its sides, means one side is cooler and another side is hotter than ambient. In other words, a Peltier cooler/heater is an active heat pump, which consumes electric power to transfer heat energy from one side to another side.  Therefore, it can be used for warming or cooling something or even simultaneously warming a thing and cooling another thing. This TEC is supplied with 12V and 10A current. It should be used with a heatsink to prevent burning due to overhot. Also for better heat conducting, thermal paste using is recommended.

Features:
Model: TEC1-12710
Rated voltage: 12V
Internal Resistance(Ω): 1.2 to 1.5
Working current: Imax=10A
Maximum Power (W): 120
Maximum temperature: Tmax (Qc = 0) above 58 ℃.
Cable length: 30cm
Material: Plastic + ceramics
Size: 40mm x 40mm x 3.4mm

Notes:
Use with a heatsink to prevent burning due to overhot.

Package Include:
3 x Thermoelectric Cooler

Electrical Parameters
Voltage 12V
Current 10A
Power 120W
Cooling Features
Temperature Difference 58 degrees (Qc = 0)
Physical Parameters
Size 40mm x 40mm x 3.4mm
Weight 24g
Material Plastic + ceramics
