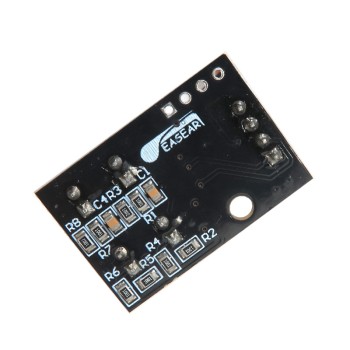

Dual Channel TDS Sensor Module

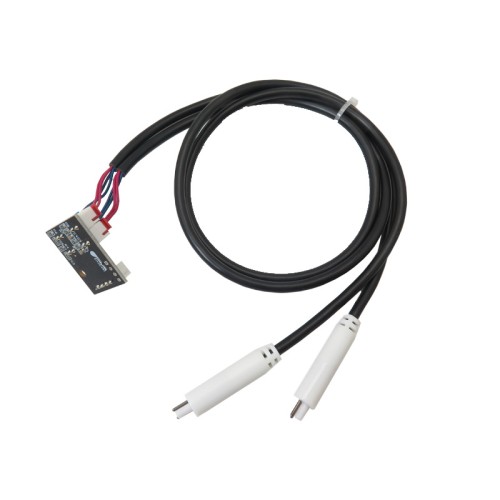

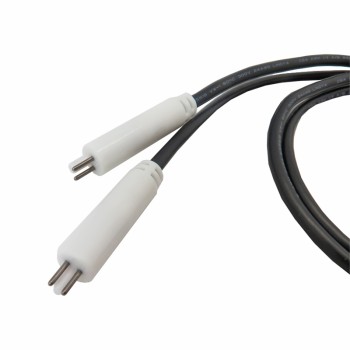

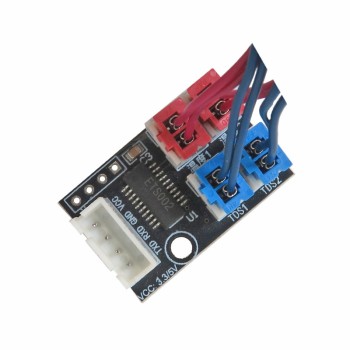

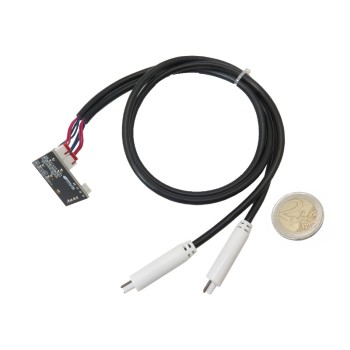

the Dual Channel TDS Sensor Module, equipped with two probes, measures not only the purity and quality of water but also the temperature in the range of 5 to 55 degrees celsius. the probes have a three-pin standard h2.54 and easily connect to the module's connector. data exchange of this module with other modules or displays is carried out via serial (uart) protocol. the waterproof dual-channel probe performs online data exchange easily and with high accuracy.

application of the Water PPM measurement module with dual-channel probe:

1. ro water purification machine
2. water purification system
3. ri system

specifications of the TDS sensor module with dual-channel probe:

1. operating voltage: 3.5 to 5 volts
2. measurement range: 0 – 2000 ppm
3. temperature measurement range: 5 to 55 degrees celsius
4. measurement accuracy: ±5% f.s.
5. temperature measurement accuracy: ±1%
6. probe connector: xh2.5-2p

Documents:

tds sensor module data sheet

tds sensor module file
