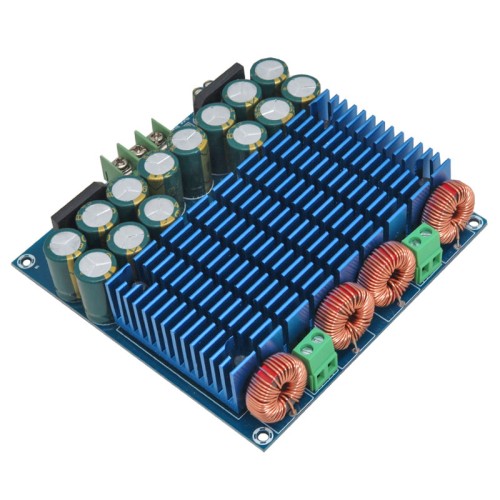

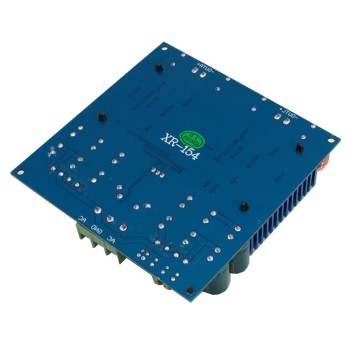

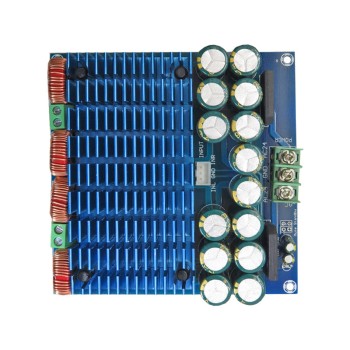

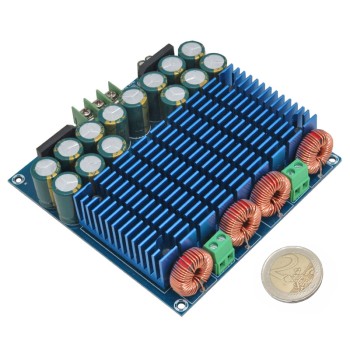

TDA8954TH 420W Stereo Amplifier Module

The amplifier module is an essential electronic component for amplifying and playing audio, commonly used in sound systems. It connects to speakers, amplifies the sound, and plays it through the output. The TDA8954TH 2 x 420W Amplifier Module, with two outputs of 420W each, delivers stereo sound amplification and operates in Class D. This TDA8954TH 420W Stereo Amplifier Module also features two modes, Standby and MUTE, allowing it to operate with a current draw of 65mA in both states.

The TDA8954TH Stereo Audio Amplifier Module comes equipped with a heatsink, effectively dissipating the heat generated by the module's components, ensuring efficient operation.

Applications of the TDA8954TH 420W Stereo Amplifier Module

1. Audio equipment
2. Sound systems and projects
3. Audio broadcasting

Specifications of the TDA8954TH 420W Stereo Amplifier Module

1. Operating Class: D
2. Quiescent current: 65mA
3. Efficiency: 95%
4. Frequency response: 20Hz to 20kHz
5. Output: Dual 420W outputs
6. Recommended power supply: 24V AC
7. Operating voltage range: 12.5V to 28V AC
8. PCB dimensions: 117 x 117 x 30mm
9. Weight: 258g

Documents:

TDA8954TH Stereo Audio Amplifier Module
