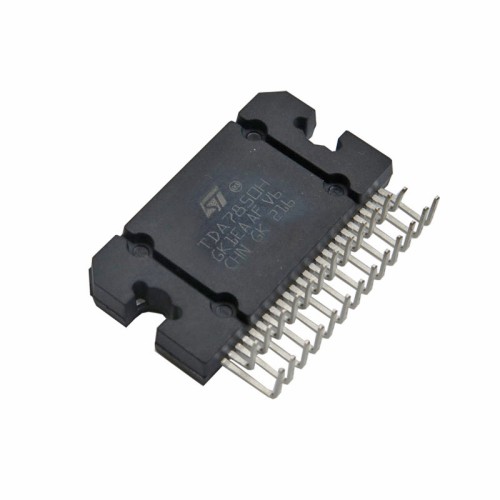

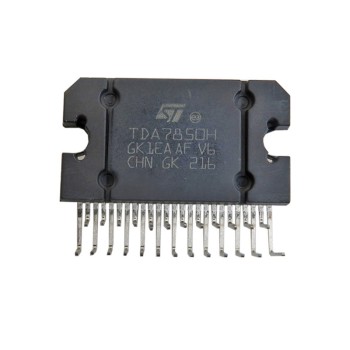

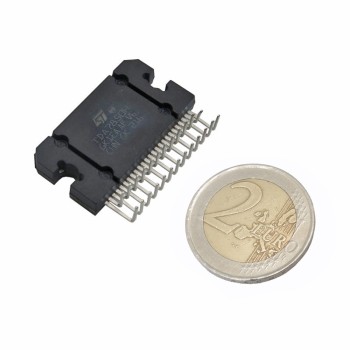

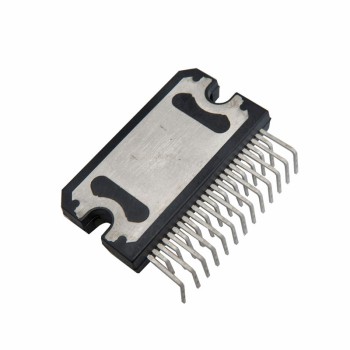

TDA7850H Amplifier IC

TDA7850H Amplifier IC
Click image for Gallery
  • Product Code:SQ11431
  • Availability: 1000
  • $4.30
  •
  • Ex Tax:$4.30
This product has a minimum quantity of 3
+
-

0 reviews / Write a review

Tags: Amplifier, TDA7850H Amplifier IC, Audio Amplifier

The TDA7850H 4x50W Amplifier IC is a sound amplification chip built as a MOSFET and operates in class AB. It features 25 pins and provides 4 stereo channels with 50W output power. Known for being a low-noise amplifier, the TDA7850H 4-Channel Amplifier IC is commonly used in amplifier modules and audio equipment. A key feature of this amplifier IC is its protection capabilities against short circuits, overheating, and reverse battery polarity. The "H" in the TDA7850H Audio Amplifier IC model indicates the horizontal arrangement of its pins for easier installation

Applications of the TDA7850H Audio Amplifier IC

  1. Audio amplifier module
  2. Audio equipment

Specifications of the TDA7850H Audio Amplifier IC

    1. Output power: 4 channels, 50W
    2. Compatible with outputs:
      1. 4 x 50W @ 4Ω
      2. 4 x 30W @ 4Ω, 14.4V, 1 kHz
      3. 4 x 80W @ 1Ω
      4. 4 x 55W @ 2Ω, 14.4V, 1 kHz
    3. Amplifier class: AB
    4. Output type: 4-channel stereo
    5. Power supply: Single 28V
    6. MOSFET output power stage
    7. Excellent 2Ω driving capability
    8. Hi-Fi class distortion
    9. Low output noise
    10. ST-BY and mute functions
    11. Automatic mute at minimum supply voltage
    12. Low external component count
      1. Fixed internal gain (26 dB)
      2. No external compensation or bootstrap capacitors
    13. On-board 0.35A high-side driver
    14. Power dissipation: 80W

Documents:

TDA7850H Amplifier IC Datasheet
