Serial TTL To Ethernet Converter Module

Serial TTL To Ethernet Converter Module
  • Product Code:SQ1501
  • Availability: In Stock
  • $10.65
  •
  • Ex Tax:$10.65
+
-


Tags: Serial TTL, TCP232 T2, TTL To Ethernet, IP UDP, TTL2TCP Converter, Ethernet Converter

Description:

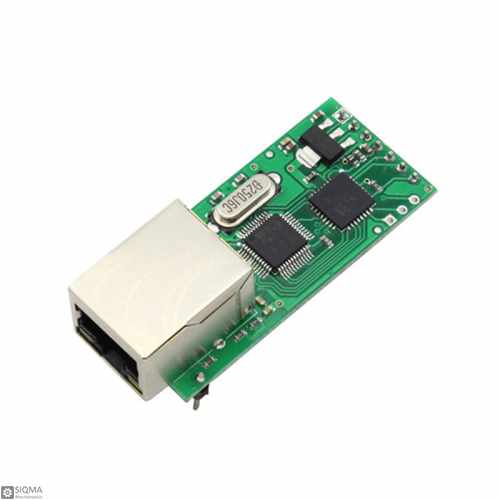

TCP232-T2 is a tiny size Serial Ethernet module which can conduct data bi-directional transparent transmission between TTL and RJ45 Port. It Works at these modes: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client, and can work in LAN, also can work on the Internet (external network). Its properties are  low power, fast speed, and high efficiency.

Features:
Processor: ARM
Flash: 32K byte
Size: 50.5mm x 22.6mm x 15mm
Operating Temp: -25~ 75°C
Storage Temp: -40 ~ 105°C, 5 ~ 95% RH
Input Voltage: DC 3.3V/5V
Working Current: 150mA
Power: <1W

Ethernet:
Port Number: 1
Interface Standard: RJ45
Rate: 10/100 Mbps, MDI/MDIX, auto switch between the cross and direct connection
Protection: 1.5KV electromagnetism isolation
Network Protocol: IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP
Buffer: Send: 6K bytes, receive: 4K bytes

Serial:
Port Number1
Interface Standard: TTL
Data Bits: 5, 6, 7, 8
Stop Bit: 1, 2
Check Bit: None, Even, Odd, Space, Mark
Baud Rate: 600 bps ~ 460.8 Kbps
Flow Control: Null
Buffer: Receive: 800 bytes

Software:
Virtual Serial (USR-VCOM): Windows 2000 or higher (32 bit/64 bit)
Configuration: computer set-up software, serial command, built-in webpage, AT command

Package Include:
1x TCP232-T2

Electrical Parameters
Baudrate 600 bps ~ 460.8 Kbps
Input Voltage DC 3.3V/5V
Working Current 150mA
Power <1W
Physical Parameters
Size 55mm x 22.6mm x 23.1mm
Weight 13g
Ports And Jumpers
RJ45 Ethernet Output
Environmental Conditions and Safety
Operating Temprature -25~ 75°C
Storage temprature -40 ~ 105°C
Operating humidity 5 ~ 95% RH
