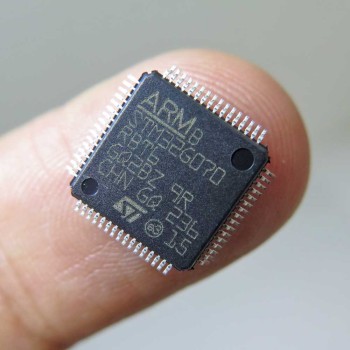

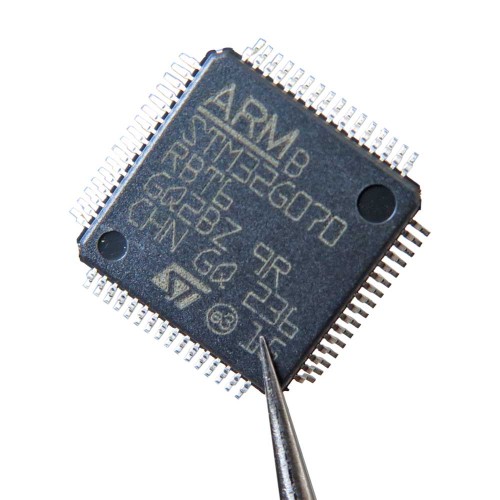

STM32G070RBT6 32Bit Microcontroller

The STM32G070RBT6 LQFP-64 M0+ 32-bit microcontroller with STM32G0 core is a mainstream microcontroller built around a high-performance 32-bit Arm® Cortex®-M0+ RISC core running at up to 64 MHz.

The STM32G070RBT6 32-bit microcontroller offers a high level of integration, making it suitable for a wide range of applications in consumer, industrial, and home domains, and is ready for IoT (Internet of Things) solutions.

The STM32G070RBT6 microcontroller includes a Memory Protection Unit (MPU), high-speed embedded memories (128 KB flash memory with read and write protection, and 36 KB SRAM), DMA, and a wide set of system functions, enhanced I/Os, and peripherals.

It provides optimized dynamic power consumption along with a comprehensive set of low-power modes, enabling the design of energy-efficient applications.

For the datasheet, please refer to the end of the page.

Applications of the STM32G070RBT6 Microcontroller

1. Motor drivers
2. Computers and mini-computers
3. Control systems
4. Medical equipment
5. Gaming and entertainment devices
6. Tracking and GPS units
7. Industrial equipment such as PLCs and inverters

Specifications of the 32Bit Microcontroller

1. ARM Cortex-M0+ processor core
2. Operating frequency up to 64 MHz
3. 128 KB Flash memory
4. 36 KB SRAM
5. Operating voltage: 1.7 V to 3.6 V
6. LQFP-64 package
7. 55 I/O pins
8. Active current consumption: 100 µA/MHz
9. Operating temperature range: -40 °C to 85 °C
10. Communication interfaces: 2× SPI, I²S, I²C, 4× USART

Documents:

STM32G070RBT6 Datasheet
