10 PCS 3D Printer 1.75mm Nozzle

10 PCS 3D Printer 1.75mm Nozzle
  • Product Code:SQ5807
  • Availability: In Stock
  • $2.80
  •
  • Ex Tax:$2.80

Available Options

This product has a minimum quantity of 3
+
-


Tags: 3D Printer Nozzle, Extruder Nozzle, Stainless Steel Nozzle, E3D extruder

Description:

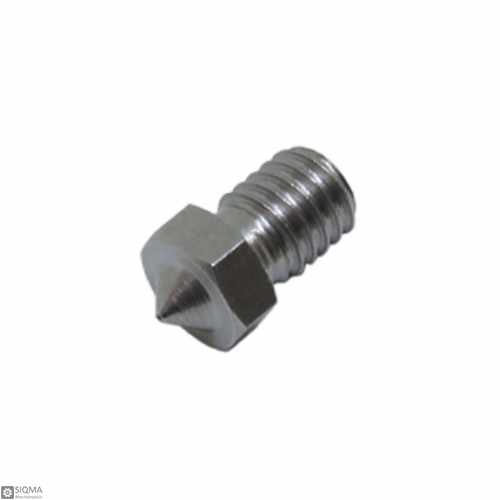

10 PCS 3D Printer 1.75mm Stainless Steel Nozzle [0.3mm 0.4mm 0.5mm] package contains 10 pieces of 1.75mm common nozzle extrusion from high-quality stainless steel material, which is made under the E3D-V5 and E3D-V6 (full metal j-head print head) model. The 1.75mm is the size of its feed filament and the input hole diameter is a little more than filament diameter, here is 2.0mm. Also, a nozzle has a thinner hole at its end known as output hole, which nozzle extrudes out the molten plastic through this hole and spread on the heat bed. This nozzle is provided in two optional output hole size of  0.3mm, 0.4mm, and 0.5mm without any price difference.
The extruder nozzle is like a small rigid hole to direct the hot melted plastic on the bed print as a thin surface at each step. This hole size is very important and results in more accuracy (finner details) and the speed of the printing. Obviously, the smaller hole size can achieve more precision and more time spending on printing.

Extruder Nozzle Application:

  1. 3D Printer

1.75mm Stainless Steel Nozzle Features:

  1. Output diameter: 0.3mm,0.4mm,0.5mm
  2. Input diameter: 2 mm
  3. Filament compatibility: 1.75mm
  4. Screw Thread: M6
  5. Size: 7mm x 12mm
  6. Material: Stainless Steel

Package Include:
10 x 3D Printer Nozzle

3D Printer Properties
Filament size 1.75mm
Physical Parameters
Size 12mm x 7mm
Material Stainless Steel
Screw Size M6
Input Diameter 2mm
Output Diameter 0.3mm,0.4mm,0.5mm
