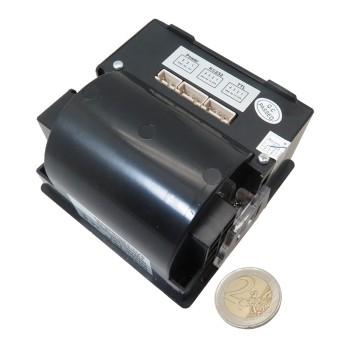

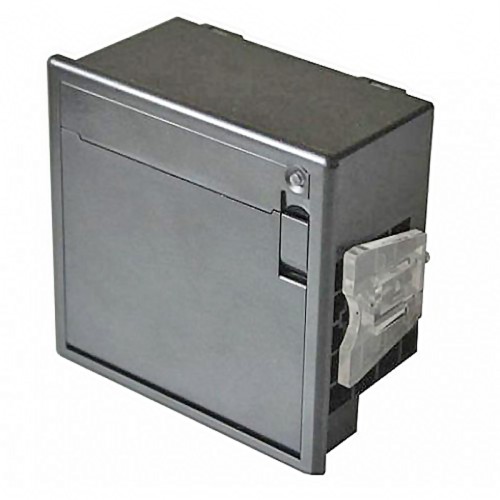

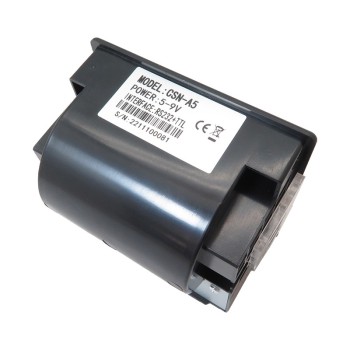

CSN-A5 Thermal Printer Module TTL Serial Communication

CSN-A5 Thermal Printer Module TTL Serial Communication
Click image for Gallery
  • Product Code:SQ1850
  • Availability: 1000
  • $16.10
  •
  • Ex Tax:$16.10
+
-

0 reviews / Write a review

Tags: CSN A5 thermal printer, thermal printer, CSN A5

Thermal printers are commonly used for payment receipts in stores. These printers have quick, easy, and inexpensive functionality for printing on paper rolls. A new printing mechanism, known as thermal printing or thermal printers, has been introduced. In this type of printing, there is no need for ink; in fact, the device's head writes on the paper by generating heat. It should be noted that the paper is of a special type and, in fact, this mechanism requires paper that is heat-sensitive and reacts accordingly. Thermal printers are available on the market for issuing receipts in two types: monochrome (black and white) and two-color. The performance of the two-color type is similar to that of monochrome printers in the Iranian market due to the absence of two-color paper. The CSN A5 printer is a suitable option for measurement systems, medical equipment, appointment devices, ordering systems, and sales


Application of CSN-A5 Thermal Printer Module:

  1. Measuring systems
  2. Medical equipment
  3. Queuing devices


Specifications of the CSN A5 Thermal Printer:

  1. Printing method: Thermal line
  2. Printing speed: 50 ~ 80 millimeters per second
  3. Resolution: 8 dots per millimeter, 384 dots per line
  4. Effective printing width: 48 millimeters
  5. Character: Character set, ASCII, (GB2312-80 (Chinese
  6. Font size: ANK: 8x16, 9x17, 9x24, 12×24 , GBK: 16×16, 24×24
  7. Printing specifications:
    Paper type: Thermal paper
    Paper width: 0.5 ± 57.5 millimeters
    Paper roll diameter: Maximum 50 millimeters
  8. Reliability: 5 million lines
  9. Interface: Serial (RS232, TTL), Parallel, USB
  10. Power supply: 5 ~ 12/9 volts DC
  11. External dimensions: 56.5 × 87 × 88 millimeters
  12. Installation port size: 82 × 82 millimeters
  13. Operating temperature: 5 ~ 50 degrees Celsius
  14. Operating humidity: 10 ~ 80 percent
  15. Storage temperature: -20 ~ 60 degrees Celsius
  16. Storage humidity: 10 ~ 90 percent
