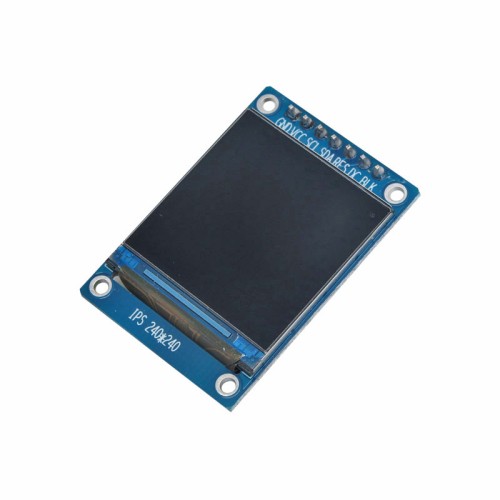

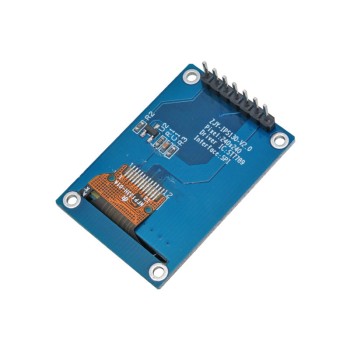

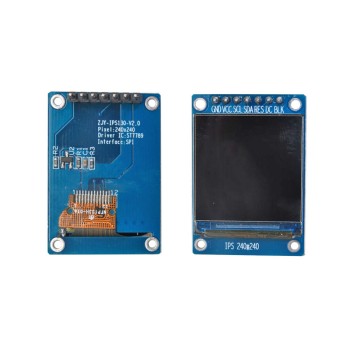

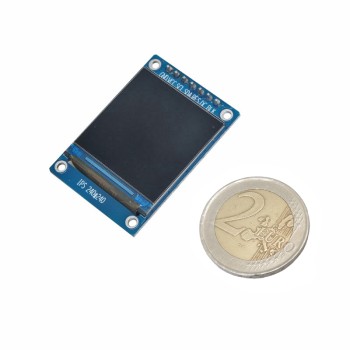

1.3 Inch IPS LCD Display Module with SSH1106 Driver and SPI Interface

This module is a IPS LCD 1.3 inch TFT LCD color display with a resolution of 240×240 pixels, which can be operated via a high-speed SPI interface with microcontrollers such as Arduino, ESP32, STM32, etc. This module uses the ST7789VW controller, which is one of the most common and powerful drivers in small color displays. IPS displays offer wider viewing angles and more vivid colors than conventional LCDs. This feature makes this module very suitable for applications such as graphical user interfaces (GUI), sensor information display, digital clock, IoT projects, etc.

Application of the LCD with SSH1106 driver and SPI interface:

1. electronics projects
2. displaying information
3. internet of things
4. and ...

Specifications of the 1.3 inch LCD display module:

1. size: 1.3 inches
2. display mode: ips typically black and white
3. graphic display format: 240rgb*240 dot-matrix
4. interface: spi
5. driver ic: st7789vw
6. dimensions: 27.78 (w) * 39.22 (h) * 3.0 +/-0.1 (t) millimeters
7. resolution: 240rgb*240 dots
8. active lcd area: 23.4 (w) * 23.4 (h)
9. operating temperature: -20 to 70 degrees celsius
