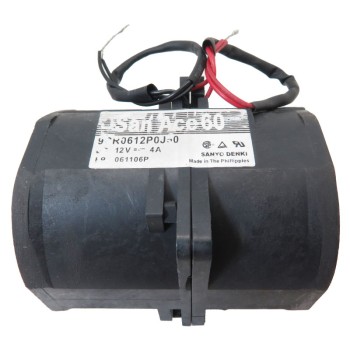

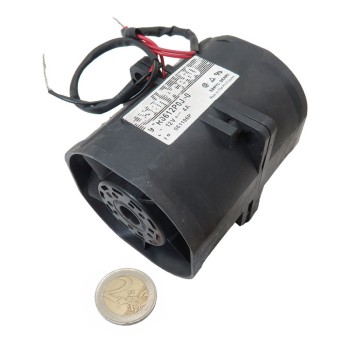

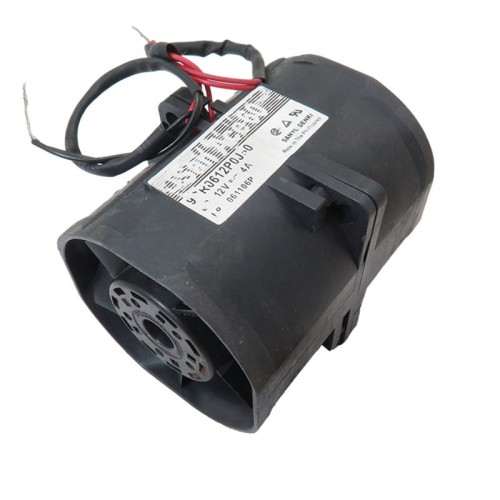

SANYO DENKI Dual High-Speed 12V, 48W Fan

The SANYODENKI High-Speed 12V, 48W Fan features a unique and innovative design with two brushless motors and fans. This SANYODENKI Dual High-Speed 12V, 48W Fan is equipped with two separate fans running at different speeds, each supported by four high-speed ball bearings. The fan blades are arranged in a counter-rotating configuration to generate sufficient pressure for optimal airflow.

Inside the SANYODENKI Fan, there are two sets of blades—one with 7 blades and another with 5 blades. When the turbine starts spinning, the 7-blade fan initially rotates at 16,000 RPM, followed by the 5-blade fan, which kicks in as the air pressure builds and can reach speeds up to 12,000 RPM.

This design makes the Dual High-Speed 12V, 48W Fan a highly efficient cooling solution, combining the performance of the SANYODENKI Dual 12V Fan with advanced engineering by SANYODENKI.

Applications of the SANYODENKI Dual 12V Fan

1. Server Cooling
2. Switching Power Supplies
3. Telecommunications Equipment

Specifications of the SANYODENKI Dual 12V Fan

1. Speed: Over 16,000 RPM
2. Air pressure: 2.5 kPa
3. Dimensions: 60mm x 60mm, Length: 76mm
4. Weight: Approximately 236 grams
5. Motor operating voltage: 10.8 to 13 V
6. Motor rated current: 2.7 A

Documents:

SANYODENKI Fan Datasheet
