RT9293BGJ6 LED Driver IC with SOT23-6 Package

Note: This product is non-returnable.

The RT9293BGJ6 LED Driver IC is essentially a high-frequency converter and booster capable of driving up to ten white LEDs. The RT9293 LED Driver IC ensures smooth LED operation by controlling the startup current of the LEDs.

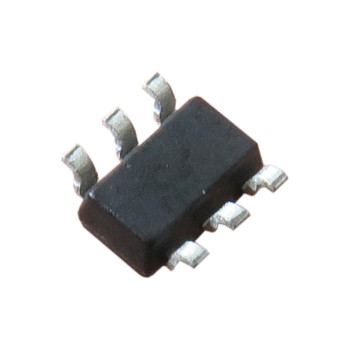

The RT9293BGJ6 Chip comes in a compact SOT23-6 package, measuring approximately 2mm x 2mm. Its small size helps reduce the overall footprint and cost of your PCB.

This compact chip features six pins, which are described in the following PINOUT:

1. LX
2. GND
3. FB
4. EN
5. Vout
6. Vin

Applications of the RT9293BGJ6 LED Driver IC

1. Mobile phones
2. Digital cameras
3. Portable tools

Specifications of the RT9293BGJ6 LED Driver IC

1. Number of Pins: 6
2. Input Voltage: 2.5 V – 5.5 V DC
3. Operating Frequency: 0.75 – 1.25 MHz
4. PWM Frequency: 100 Hz – 200 kHz
5. Operating Temperature Range: -40°C to +85°C
6. Package Type: SMD SOT23-6

Documents:

RT9293BGJ6 Chip Datasheet
