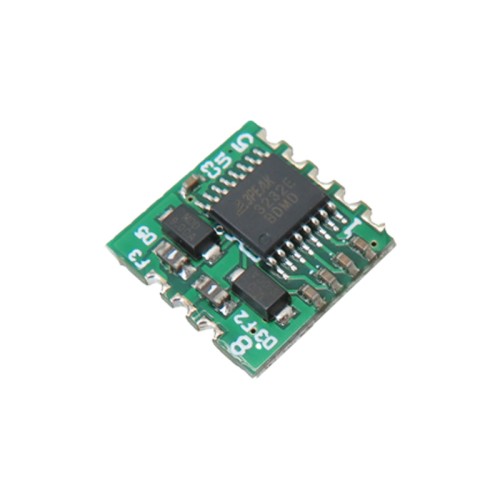

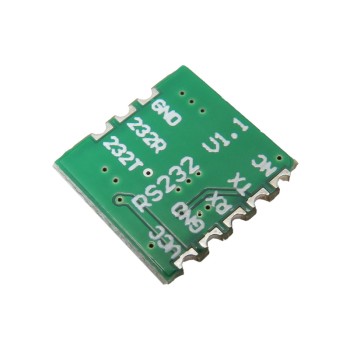

RS232 to TTL Converter Module with SP3232EEN Chip

The RS232 to TTL Converter Module is based on the SP3232EEN Module, which is an RS232 transceiver designed for bidirectional conversion between TTL and RS232 signals in electronic devices. The chip operates with a supply voltage of 3–5V DC and features ESD protection up to ±15kV.

This SP3232EEN Development Board includes 8 pins, with the following PINOUT:
1: VCC
2: GND
3: RX
4: TX
5: NC
6: GND
7: 232R
8: 232T

The RS232 to TTL Converter Board is ideal for integrating RS232 communication into microcontroller projects or other electronic systems that require reliable TTL to RS232 signal conversion.

Applications of the SP3232EEN Development Board

1. Electronic Devices
2. Industrial Environments
3. Educational

Specifications of the RS232 to TTL

1. Number of Pins: 8
2. Data Rate: 235 Kbps
3. Input Voltage: 3V DC – 5.5V DC
4. ESD Protection: ±15KV
5. Communication Protocol: TTL, RS232
6. Logic Voltage Level: ±15V DC
7. Operating Temperature Range: -40°C to +85°C
8. Dimensions: 10 × 10 × 2 mm
