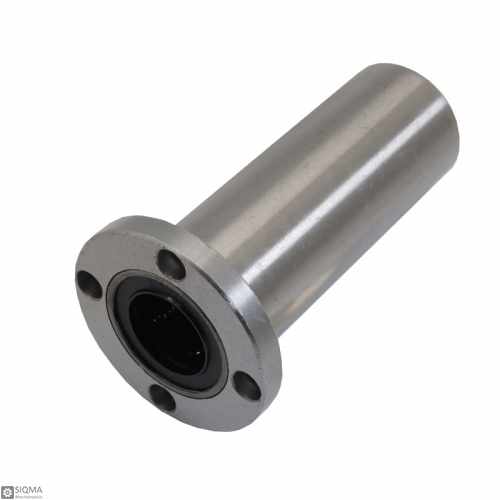

LMFxUU Round Flanged Type Linear Bushing

Description:
The Linear Bush is a linear guide used in combination with an LM shaft that has a cylindrical shaft. This product makes linear movements with a minimum of frictional resistance to provide highly accurate and supple movement.
A linear bearing includes a carriage and a rolling element. The linear bearing is mounted on either a square or round rail depending on the requirements of the application. The rolling element of the bearing, whether it be a ball or roller slides, help move a load with ease. These are the basics which are adjusted and tweaked to fulfill a wide array of manufacturing and industry needs.

Features:
Product Name: Linear Bushing
Model: LMF6LUU, LMF8LUU, LMF10LUU, LMF12LUU, LMF16LUU, LMF20LUU, LMF25LUU, LMF30LUU, LMF35LUU, LMF40LUU, LMF50LUU (Optional)
Material: Metal, Rubber
Inner Diameter x Outer Diameter: 6mmx12mm(LMF6LUU), 8mmx15mm(LMF8LUU), 10mmx19mm(LMF10LUU), 12mmx21mm(LMF12LUU), 16mmx28mm(LMF16LUU), 20mmx32mm(LMF20LUU), 25mmx40mm(LMF25LUU), 30mmx45mm(LMF30LUU), 35mmx52mm(LMF35LUU), 40mmx60mm(LMF40LUU), 50mmx80mm(LMF50LUU)
Total Length: 35mm(LMF6LUU), 45mm(LMF8LUU), 55mm(LMF10LUU), 57mm(LMF12LUU), 70mm(LMF16LUU), 80mm(LMF20LUU), 112mm(LMF25LUU), 123mm(LMF30LUU), 135mm(LMF35LUU), 151mm(LMF40LUU), 192mm(LMF50LUU)
Bottom Size: 28mmx5mm(LMF6LUU), 32mmx5mm(LMF8LUU), 40mmx6mm(LMF10LUU), 42mmx6mm(LMF12LUU), 48mmx6mm(LMF16LUU), 54mmx8mm(LMF20LUU), 62mmx8mm(LMF25LUU), 74mmx10mm(LMF30LUU), 82mmx10mm(LMF35LUU), 96mmx13mm(LMF40LUU), 116mmx13mm(LMF50LUU)
Mount Hole Diameter: 3.5mm(LMF6LUU), 3.5mm(LMF8LUU), 4.5mm(LMF10LUU), 4.5mm(LMF12LUU), 4.5mm(LMF16LUU), 5.5mm(LMF20LUU), 5.5mm(LMF25LUU), 6.6mm(LMF30LUU), 6.6mm(LMF35LUU), 9mm(LMF40LUU), 9mm(LMF50LUU)

Package Include:
1 x Round Flanged Type Linear Bushing
