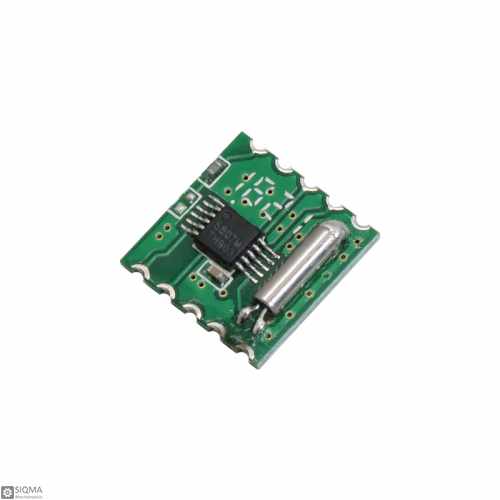

10 PCS RDA5807M FM Stereo Receiver Module

10 PCS RDA5807M FM Stereo Receiver Module
Click image for Gallery
  • Product Code:SQ4627
  • Availability: 10000
  • $3.75
  •
  • Ex Tax:$3.75
This product has a minimum quantity of 3
+
-


Tags: FM Receiver, Stereo Receiver Module, Arduino FM Receiver, FM Stereo Receiver

Description:
The RDA5807M FM Stereo Receiver is a compact, simple, and low power consumption FM receiver module, specialized for Arduino and other microcontroller projects, which is based on a CMOS single chip of RDA5807M.  The RDA5807M series applies a strong low IF digital audio processor to have high quality sound in any receiving conditions. The chip series cover global FM bands from 50MHz to 115MHz
This module can be used as a full independent FM stereo receiver, which can directly be connected a headphone and be heard the sound, but if it's needed to be heard a huge sound through the speakers, must be used an audio amplifier, too. This module has a 32.768KHz crystal oscillator and can electronically be tuned, using microcontroller I2C lines.
This can be used in mobile phones, DVD, TV, MP3, MP4 and any other built-in FM receiver module, industrial and mining enterprises, campus, residential tourist areas and other public places, stereo FM radio system, wireless audio and wireless stereo headset functionality, GPS navigation, TV broadcasting systems and other wireless FM radio, high-end game consoles and wireless audio electronic toys.

Features:
Frequency: 87MHz ~ 108MHz
Input Voltage: 2.7V ~ 3.6 V
Input Voltage Recommended: 3.3V
Output Impedance: 32Ω
Interface: I2C
Size: 11mm x 11.2mm

 Package Include:
10 x RDA5807M FM Radio Module

Interfaces
Interface Type I2C
Electrical Parameters
Frequency 87MHz ~ 108MHz
Impedance 32Ω (Output)
Input Voltage 2.7V ~ 3.6 V
Input Voltage (recommended) 3.3V
Physical Parameters
Size 11mm x 11.2mm
