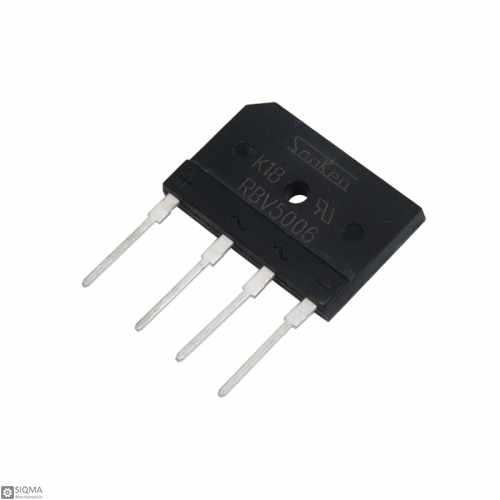

5 PCS RBV5006 Rectifier Diode Bridge [50A]

5 PCS RBV5006 Rectifier Diode Bridge [50A]
  • Product Code:SQ8404
  • Availability: In Stock
  • $2.10
  • Ex Tax:$2.10
This product has a minimum quantity of 4

Tags: Dip Diode, Rectifier Diode, High Power Diode, Diode Bridge, Power Rectifier, RBV5006

 5 PCS RBV5006 Rectifier Diode Bridge [50A] package contains 5 pieces of a diode bridge for rectifying power AC electricity with 50A current in power supply circuits such as regulators for converting AC voltage to DC voltage, which is provided as an RBV5006 2.0 Single-Phase Silicon Bridge Rectifier part. This part is presented as an integrated component with line shape, which is cased with reliable low-cost construction utilizing the molded plastic technique. This part has 4 Plated leads solderable adopted MIL-STD-202, Method 208.  This RBV5006 is a single-phase silicon bridge rectifier with silver-plated copper leads and a reliable construction utilizing molded plastic case. This rectifier is designed for soldering on the printed circuit board or mounting in breadboards, that can operate with AC voltage up to 600V peak or 420V RMS with 50A average. During rectifying operation, the internal diodes have 1.1V max in forward biased and can tolerate up to 600V at reverse biased.

Part Status: Active
Bridge Type: Single Phase
Configuration: Single
Maximum Reverse Repetitive Voltage: 600V
Average Forward Current: 50A
Maximum DC Voltage: 600V
Maximum RMS Reverse Voltage: 420V
Maximum Non-Repetitive Forward Surge Current: 400A
Maximum Forward Voltage: 1.1V (at 25A)
Automotive: No
Standard Package Name: RBV25
Pin Count: 4
Mounting: Through Hole
Storage Temperature: -40°C ~ 150°C

Package Include:
5 x RBV5006 Rectifier Bridge

Component Features
Package RBV25
Pin Number 4 Pin
Diode Specifications
DC Voltage 600V
Forward Current 50A
Forward Voltage 1.1V (at 25A)
RMS Voltage 420V
Revers Baiased Voltage 600V
Environmental Conditions and Safety
Storage temprature -40°C ~ 150°C
