CDM324 Traffic Control Sensor Module

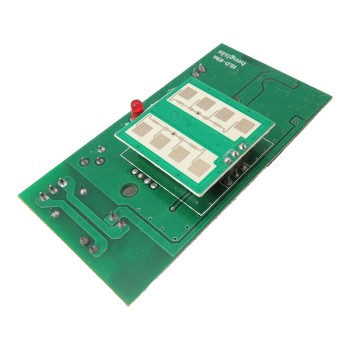

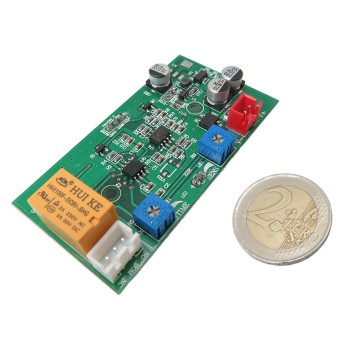

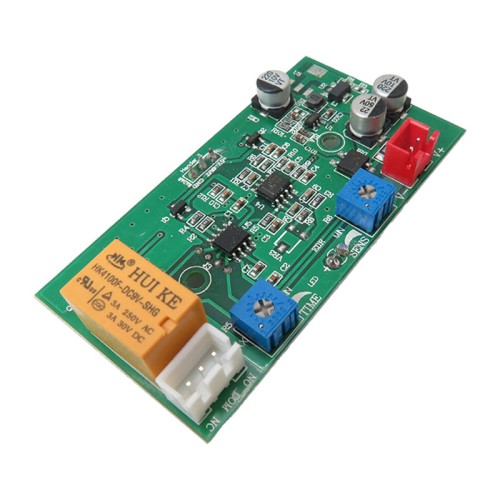

the cdm324 motion sensor module is equipped with a microwave sensor along with a driver board. the driver board includes radar sensor amplifier circuits, a power block, and an output block. the power block features a switching regulator with an input range of 8 to 25 volts. the output block consists of a 3 amp relay, and the range and timing of its operation can be specified using potentiometers. microwave radar sensors can detect the distance to a target by transmitting and receiving radio waves. compared to other distance detection sensors, radar sensors are smaller, lighter, and have a wider detection range. radar sensors operate in harsh conditions and are capable of penetrating non-metallic objects, dust, smoke, and fog. additionally, these sensors can detect multiple targets simultaneously. the cdm324 sensor is a motion sensor that uses the doppler effect to detect movement. this sensor can identify any type of movement within a specified distance and convert it into an electrical voltage. the frequency of this electrical voltage has a direct relationship with the speed of the object passing in front of the sensor. the cdm324 sensor module has many applications for access control and traffic management.

application of cmd324 radar module:

1. access gate control
2. in smart control
3. switching lighting
4. elevator traffic control
5. advertising
6. security
7. smart automation systems

specifications of the CDM324 Gate Control Sensor:

1. input voltage: 8 to 30 volts
2. working current: 35 milliamperes
3. operating frequency: 24 ghz
4. microwave power: 3 to 5 milliwatts
5. detection range: up to 8 meters adjustable with potentiometer
6. detection angle: horizontal: 80 degrees, vertical: 32 degrees
7. adjustable delay from 2 seconds to 20 minutes
8. output: 3-amp relay
9. operating temperature: -20 to 80 degrees celsius
