pH Sensor Monitoring and Temperature Module

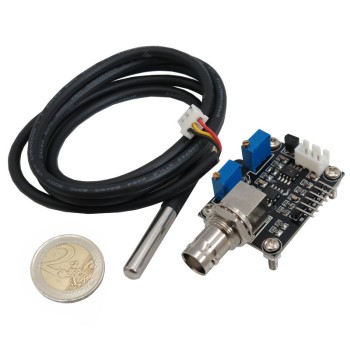

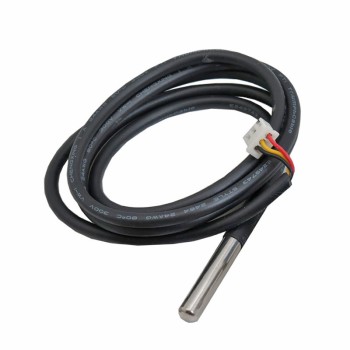

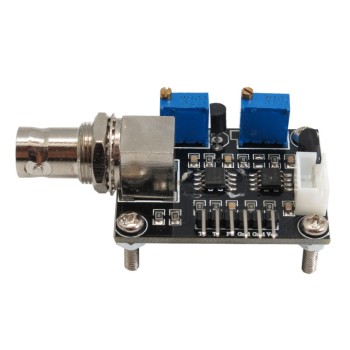

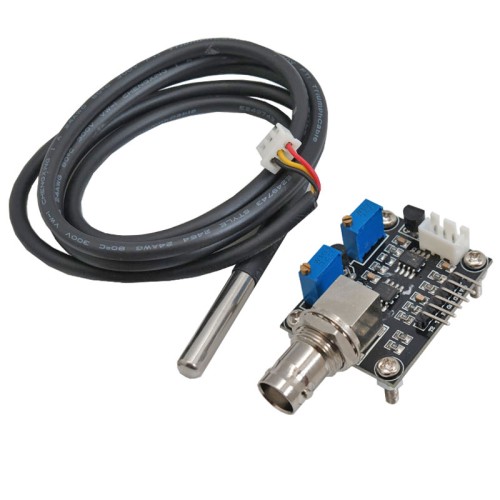

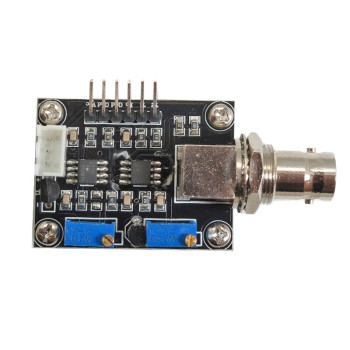

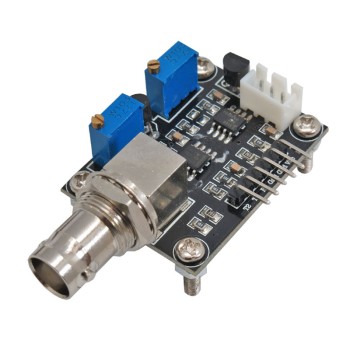

The pH Sensor Monitoring and Control Module is a complete unit that includes a pH sensor, a white temperature sensor connector, and a BNC connector for attaching a pH electrode. With output pins for both temperature and pH, this module requires an external display to show readings. It is fully compatible with Arduino and offers easy, hassle-free setup. A 3-wire temperature sensor is included and connects directly to the white connector.

The pH Meter Module is used to determine the acidity level of liquids to assess water quality. pH values range from 1 to 14—7 indicates neutral water, values below 7 are acidic, and values above 7 are alkaline.

The pH Display and Measurement Module is ideal for environmental and laboratory applications requiring accurate pH and temperature monitoring.

Applications of the pH Display and Measurement Module

1. Aquaculture Systems
2. Industrial Process Monitoring
3. Liquid Quality Analysis
4. Environmental Assessment
5. Agricultural Water Management
6. Wastewater Control Systems

Specifications of the pH Display and Measurement Module

1. Power Supply: 5V DC
2. Current Consumption: 5–10 mA
3. Power Consumption: ≤0.5W
4. Response Time: Approximately 5 seconds
5. Stabilization Time: Around 60 seconds
6. Measurement Accuracy: ±0.1 pH at 25°C
7. pH Measurement Range: 0 to 14 pH
8. Operating Temperature Range: -10°C to 50°C (Optimal: ~20°C)
9. Probe Temperature Detection Range: 0°C to 100°C
10. Measurement Temperature Range: 0°C to 60°C
11. Humidity Tolerance: Up to 95% RH
12. Connector Type: BNC for probe interface
13. Indicator: Onboard LED shows power status
14. Module Dimensions: 43mm × 32mm
15. Build Material: Plastic (black and transparent casing)
