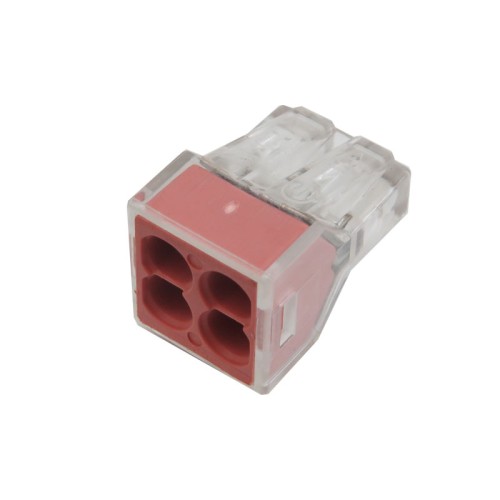

PCT-104 Push Wire connector

Using PCT series connectors helps save space in electrical installations. The PCT-104 4-channel connector, equipped with 4 sockets, is suitable for wires ranging from 0.5 to 1.5 mm² and can handle currents up to 24 amps.

This 4-channel connector model ensures a more secure connection of wires and improves the reliability of electrical contacts. Additionally, the PCT-104 4-channel socket speeds up the wiring process, making installation faster and more efficient.

Applications of the wire terminal block

1. Speakers
2. Lighting systems
3. Gate and door controls
4. Intercom systems
5. Pumps
6. Awnings and parasol curtains

Specifications of the Push Wire Connector

1. Rated voltage: 400 V
2. Rated surge voltage: 4 kV
3. Nominal current: 24 A
4. Rated power: 5 kW
5. Weight: 0.027 g
6. Dimensions: 13 × 19.5 × 13.1 mm
7. Maximum continuous operating temperature: 85°C
