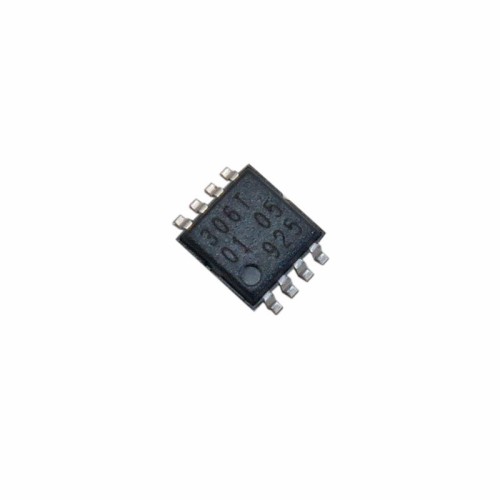

PCA9306DP1 IC with SOP8 package

The PCA9306DP1 IC with SOP8 package is a bidirectional I²C and SMBus voltage level shifter switch with an active enable (EN) input. It allows voltage translation between 1V and 5V without the need for a direction pin. Its low on-resistance (RON) ensures minimal propagation delay.

The PCA9306DP1 bidirectional voltage level translator IC features very low input and output resistances, which help reduce distortion and improve signal integrity.

Applications of the PCA9306DP1 IC with SOP8 Package

1. Bidirectional I2C level translation

Specifications of the PCA9306DP1

1. Reference voltage (Vref): -0.5 to +6 V
2. Bias voltage (Vbias): -0.5 to +6 V
3. Input voltage range: -0.5 to +6 V
4. Voltage on input/output pins (VI/O): -0.5 to +6 V
5. Channel input current (Ich): 128 mA
6. Input clamping current (IIK): -50 mA
7. Storage temperature range (Tstg): -65 to +150 °C
