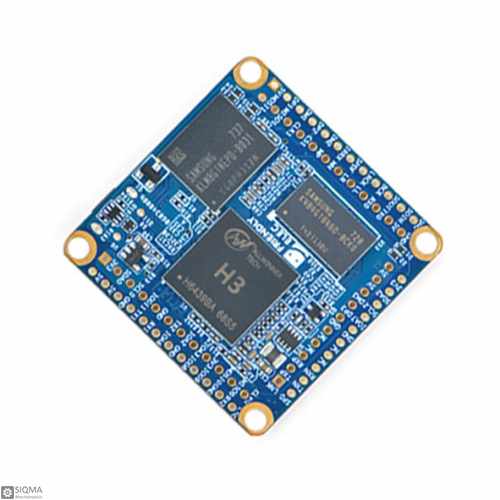

NanoPi NEO Core Board

NanoPi NEO Core Board
  • Product Code:SQ6170
  • Availability: In Stock
  • $26.91
  •
  • Ex Tax:$26.91

Available Options

+
-


Tags: NanoPi NEO Core, Quad Core Board, Allwinner H3, 256MB RAM, 512MB RAM

Description:
NanoPi NEO Core Quad Core Cortex A7 Board [256MB, 512MB RAM] is a full computer on a small single-board (smaller than half size of the Raspberry Pi), which consist of CPU, GPU, HDD, RAM, ethernet, ports, and also operating systems to be placed in educational robot, copters, toys, etc., to command and control things. FriendlyARM is an open-source computer developer which makes open-source single-board computers with NanoPi brand, for Linux hackers, toymakers, and hobbyists. Such a single-board computer can be run under the Linux based operating system. The NanoPi computers are produced in different model and series of NanoPi 2, NanoPi 2 Fire, NanoPi M1, NanoPi M2, NanoPi M3, NanoPi NEO, NanoPi NEO Air, NanoPi NEO core, NanoPi S2, NanoPi fire, Nano Pi Duo, etc.
This computer board is Duo series and based on the Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz 64-bit support CPU and optional memory of 256MB  DDR3 SDRAM with 4GB eMMC flash or 512MB DDR3 SDRAM with 8GB eMMC flash, which is booted and operated on the Linux Based operating system such as U-boot, Ubuntu-Core. This series is an ultra-low size, simplified, and funny, to begin controlling the things easily and simply.  This board is supplied by 5V DC with 2A current through the micro-USB port or 2 pins connection. It has  OTG--USB (and power in) USB2-host (through the 4 pins of GPIO p[ins), MiPi video socket (for LCD and camera), and ethernet (through the GPIO pins) as input ports and 16 pins serial GPIO-UART, SPI, I2C, Audio, etc, and a TFT slot.
This computer board is sold alone, but you can prepare its dedicated accessory such as USB to Micro-USB cable, 220 to 5V 2A adapter, NanoPi case, from our site store.

Features:
CPU: Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
DDR3 RAM: 256MB/512MB (Optional )
Storage: 4GB eMMC For 256MB RAM And 8GB eMMC For 512MB RAM
MicroSD Slot x 1
MicroUSB: OTG and power input
GPIO: two 2.54mm spacing 12x2pin header,one 2.54mm spacing 10x2pin header
Connectivity: 10/100M Ethernet(6Pin, included in 2.54mm pitch pin header)
USB Host x3 (included in 2.54mm pitch pin header)
Debug Serial Port(4Pin, included in 2.54mm pitch pin header )
Audio input/output Port(4Pin, included in 2.54mm pitch pin header )
GPIO: It includes UART, SPI, I2C, IO, etc
PC Size: 40 x 40mm
Power Supply: DC 5V/2A
Temperature measuring range: -40℃ to 80℃
OS/Software: U-boot, Ubuntu-Core

Package Include:
1 x NanoPi computer board

Board Parameters
CPU Allwinner H3, Quad-core Cortex-A7 Up to 1.2GHz
GPIO It includes UART, SPI, I2C, IO etc
OS U-boot,Ubuntu-Core
Power DC 5V/2A
RAM 256MB/512MB ( Optional )
Physical Parameters
Operating Temperature -40℃ to 80℃
Net Weight 8g
Size 40 mm x 40 mm
Packing Weight 34g
Ports And Jumpers
Micro USB OTG and power input
Debug Port 4Pin, included in 2.54mm pitch pin header
USB 3x2Pin, included in 2.54mm pitch pin header
Audio Input 4Pin, included in 2.54mm pitch pin header
Audio Output 4Pin, included in 2.54mm pitch pin header
MicroSD Slot 1
Ethernet 2x3Pin, included in 2.54mm pitch pin header
