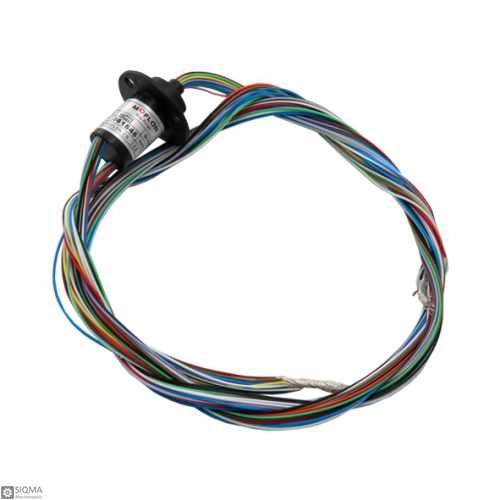

MMC235 Slip Ring [18 Wire] [2A]

MMC235 Slip Ring [18 Wire] [2A]
  • Product Code:SQ5600
  • Availability: In Stock
  • $20.00
  •
  • Ex Tax:$20.00
+
-


Tags: Slip Ring, miniature Ring ring, MMC235 Slip Ring

Description:

MMC235 slip ring is small and compact with OD 12.5mm * L 23.5mm, standard, off-the shelf. Color-coded lead wires are used on both the stator and rotor for simplified electrical
connections. Using a 90° V-groove ring design for each ring.
MMC2359 is the high-end version corresponding to MMC235, It has higher performance and longer working life, higher speed rotating speed, low noise.

MMC235 is an electrical rotary joint using gold-gold contact, to ensure the stability and working life, mainly used in the field of civil and commercial.


Miniature slip ring Application:

  1. CCTV Monitoring System
  2. Electrical test equipment.
  3. Medical equipment.
  4. Rotary table
  5. Robotics
  6. Laboratory equipment
  7. Manufacturing and process control equipment


MMC235 Slip ring Features:

  1. Max Speed: 250rpm
  2. Housing Material: Plastics
  3. Rated Voltage: 0 ~ 240VAC/VDC
  4. Rated Current: 2A
  5. Insulation Res: ≥600MΩ/500V DC
  6. Operating Temperature: -30℃ ~ 80℃
  7. Operating Humidity: 0 ~ 85% RH
  8. Outer Diameter: 12.5mm
  9. Life Time: >10 million Revs


Documents:

  1. Slip ring 18 ways Link
  2. Miniature slip ring Introduction Link

Electrical Parameters
Rated Current 2A
Rated Voltage 0 ~ 240VAC/VDC
Physical Parameters
Outer Diameter 12.5mm
Life Time >10 million Revs
Material Plastics (Housing Material)
Environmental Conditions and Safety
Operating Temprature -30℃ ~ 80℃
Operating humidity 0 ~ 85% RH
