5 PCS 3D Printer Extruder Drive Gear

5 PCS 3D Printer Extruder Drive Gear
  • Product Code:SQ3881
  • Availability: In Stock
  • $0.99
  • Ex Tax:$0.99
This product has a minimum quantity of 10

Tags: Extruder Gear, Drive Gear, Extrusion Wheel, 26 Tooth Gear, MK8 Gear

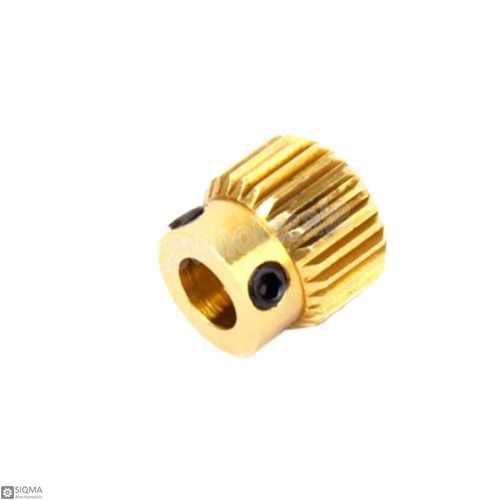

5 PCS 3D Printer Extruder Extrusion Wheel Gear [26 Tooth] package includes 5 pieces of copper or stainless steel gear, which is an extrusion gear or extrusion wheel of the 3D printer MK8 extruder. The extruder is the base of the printing process. The solid plastic of the printing material known as filament gets into the extruder, melted due to high temperature and get out and get out according to programmed command. This acts as a programmed fancy hot glue gun. The extruder has two main parts of the hot end and cold end, together (Direct extruder) or separated (Bowden extruder). The cold end base is a step motor to pull inward the filament in the extruder and push it outward. The hot end should be hot enough to melt the filament and spout on the bed.
 This extrusion gear is used as a hobbed gear, which is a gear that bites the solid filament to grind it and push it inward the hot end. This gear is equipped with 2 holes for M3 screw to fasten and more tighten it on the extruder motor shaft. A good gear must have the best clutch and could apply the highest amount of torque on the filament which this gear with 26 teeth, matches and suitable for a single head MK8 extruder, to have the high-performance tool for DIY and professional systems.

Size: 11mm x 11mm
Inner Diameter: 5 mm
Outer Diameter: 11 mm
Tooth number: 26 teeth
Gear Toothed Length: 7 mm
Screw: 2 x M3
Material: copper or stainless steel
Suitable for: MakerBot or 1.75mm consumables only

Package Include:
5 x Extruder Drive Gear

Physical Parameters
Size 11mm x 11mm
Weight 5g
Inner Diameter 5mm
Outer Diameter 11mm
Material Copper/stainless steel
