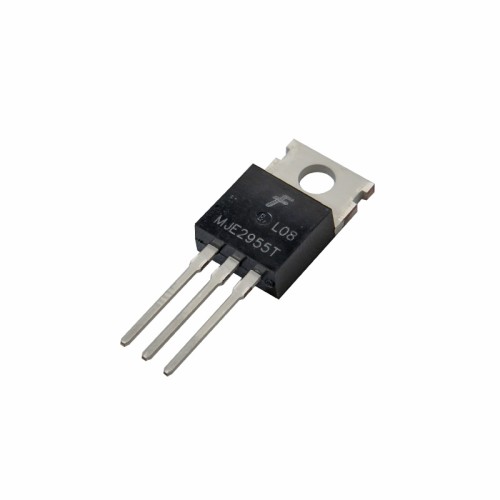

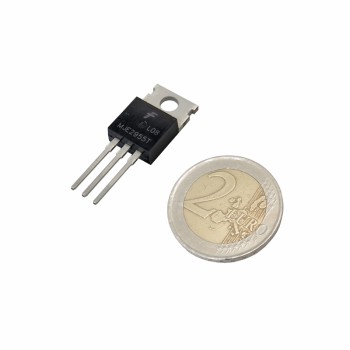

MJE2955 Transistor

the mje2955 transistor is one of the high-frequency pnp transistors, where the collector current and consequently the collector-emitter voltage change with variations in the base current of the transistor. due to its 10-amp collector current capability, it is used in power switching applications, switching regulators, converters, and amplifiers. the low collector-emitter voltage in the saturation state and the high switching speed are the most important features of the mje2955 transistors, which make them an attractive option for use.

applications of MJE2955 pnp transistor:

specifications of mje2955 switching transistor:

1. transistor polarity: pnp
2. collector current: 10 amperes
3. collector-emitter voltage: 60 volts
4. gain: 20
5. power: 75
6. operating temperature range: -50 to 150 degrees celsius
7. number of leads: 3
8. amplifier bandwidth: 2 megahertz
9. package format: to220

Documents:

mje2955 transistor datasheet
