5 PCS Mini NRF24L01Plus Wireless Transceiver Module [2.4GHz]

5 PCS Mini NRF24L01Plus Wireless Transceiver Module [2.4GHz]
  • Product Code:SQ2026
  • Availability: In Stock
  • $3.70
  • Ex Tax:$3.70
This product has a minimum quantity of 2

Tags: NRF24L01, Radio Transceiver, 2400MHz Transceiver, NRF24L01Plus, Wireless Tranceiver

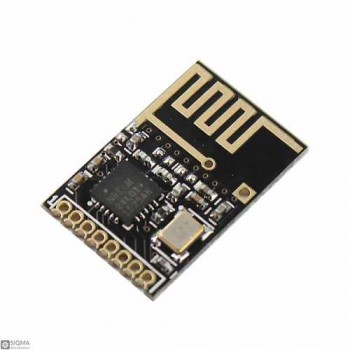

Mini NRF24L01Plus SMD Wireless Transceiver Module is a 2.4GHz transceiver, which integrates a complete RF transceiver, RF synthesizer, a power amplifier, a crystal oscillator, a demodulation, modulator and base band logic, including the Enhanced shockburst™ hardware protocol accelerator supporting a high-speed SPI interface for the application controller. The module is based on Nordic nRF24L01+ chip, which is highly integrated, ultra-low power (ULP) and 2Mbps RF transceiver for the 2.4GHz ISM (Industrial, Scientific, and Medical) band. The  plus (+) version of the IC has improved range, sensitivity, and data rates than the older version. The command set is backward compatible with the original nRF24L01+.
The module is an ultra low power consumption, which results in months to years of battery lifetime. It is a multi-frequency (125 frequency) and multi-point communication and frequency hopping to meet the communication needs. Since the link layer is fully integrated in, the module is very easy to develop.
The module has an ultra-small built in antenna, compact, 15x 29 mm (including antenna). Therefor with these properties, it can be used widely in digital devices such as mouse, keyboard, wireless headsets, intelligent sports equipment, remote controls, voice applications, security devices, VOIP applications.

IC: nRF24L01+
Frequency: 2.4GHz
Input Voltage: 1.9V ~ 3.6V
Transmitting Power: +7dB
Receiving sensitivity: ≤ -90dB
RX Mode current: 2Mbps – 15mA, 1Mbps – 14.5mA, 250kbps – 14mA
Sleep Mode current: 15uA
Power off current: 700nA
Data Rate:2Mbps, 1Mbps, 250Kbps
Interface: SPI
Transmission Distance: 250m in open area
Operation temperature: -20°C  ~ +55°C
Size: 12mm x 18mm

Package Include:
5 x NRF24L01+ SMD Wireless Module

Interface Type SPI
Wireless Parameters
Data Rate 2Mbps , 1Mbps , 250Kbps
Receive sensitivity ≤ -90dB
Transmit Power +7dB
Transmission Distance 250m (Open)
Transmit Standby current 15uA
RX Mode Current  2Mbps – 15mA, 1Mbps – 14.5mA, 250kbps – 14mA
Electrical Parameters
Frequency 2.4GHz
Input Voltage 1.9V ~ 3.6V
Board Parameters
Main Chip nRF24L01+
Physical Parameters
Size 12mm x 18mm
Environmental Conditions and Safety
Operating Temprature -20°C  ~ +55°C
