Micro SD TF module with read and write capabilities

Micro SD TF module with read and write capabilities
Click image for Gallery
  • Product Code:SQ12387
  • Availability: 1000
  • $0.70
  •
  • Ex Tax:$0.70
This product has a minimum quantity of 7
+
-


Tags: arduino shield, shield, data logger shield, arduino sd card

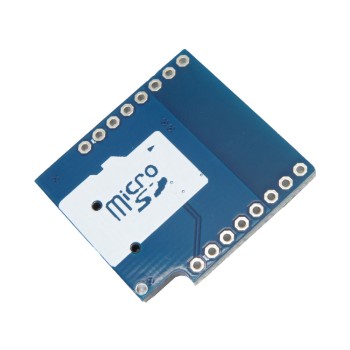

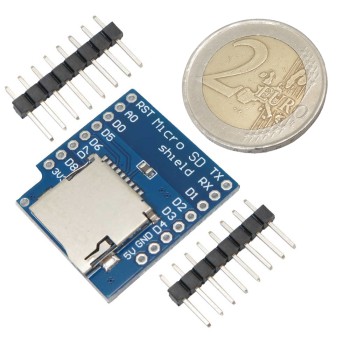

The D1 Mini Micro SD Card Module allows you to add a micro SD card to your D1 Mini projects. The module is compatible with micro SD cards up to 64GB and supports both FAT16 and FAT32 file systems. It also has a built-in level shifter to ensure compatibility with 5V and 3.3V systems. With the D1 Mini Micro SD Card Module, you can easily store and access large amounts of data in your projects.
This shield is designed for use with the Wemos/Lolin D1 mini and mini Pro development boards. It is also compatible with the standard Arduino SD card library.

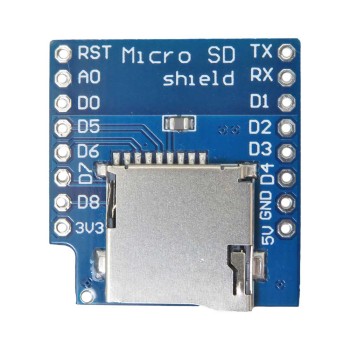

Use the pinouts to connect:
D5: CLK
D6: MISO
D7: MOSI
D8: CS

application of micro sd module:

  1. storing files on sd memory in fat16 and fat32 formats

specifications of micro sd card reader module:

  1. supply voltage: 3-5 volts
  2. headers include: 2 x male 8-pin

Documents:

micro sd tf module datasheet
