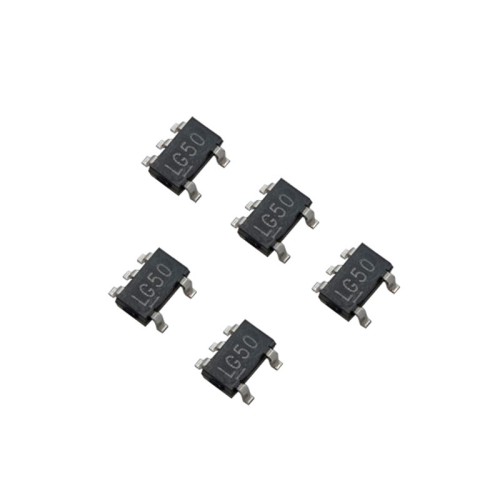

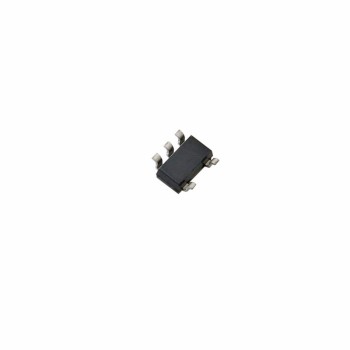

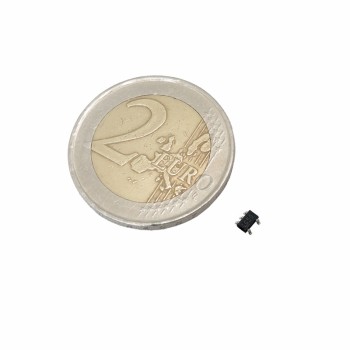

MIC5219 5V voltage regulator IC 5pcs

The IC MIC5219 is a very efficient linear voltage regulator, capable of supplying high instantaneous currents. One of the positive points of this regulator is the very low output drop. The MIC5219 regulator IC experiences a voltage drop of 10 millivolts in a low load state and a voltage drop of less than 500 millivolts in a full load state. The 9MIC521 regulator IC can be activated or deactivated using TTL, and when the regulator is activated, the power consumption can drop to almost zero, which increases the battery life and protects the circuit against reverse connection and high temperature. Another positive feature of the regulator IC is the very low ripple of the IC.

application of MIC5219 5V voltage regulator IC:

1. laptop, notebook, computer
2. battery-powered equipment
3. electronic devices
4. switching circuits

specifications of 7805 IC regulator:

1. output current: 500 ma
2. output voltage: 5 volts
3. model: mic5219-5.0bm5
4. package: sot23-5
5. maximum power drop: 500 mv
6. low temperature coefficient
7. temperature limitation
8. protection against reverse connection

Documents:

datasheet for mic5219 sot23 linear voltage regulator
