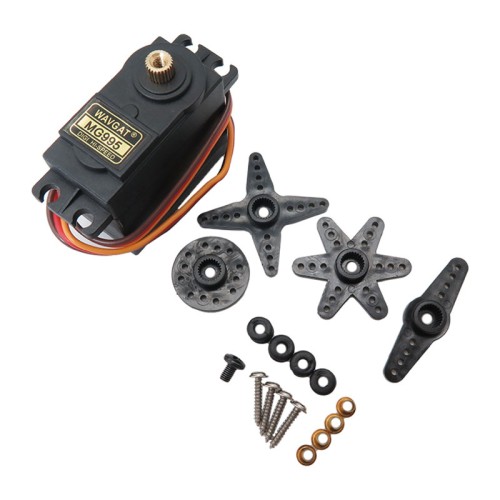

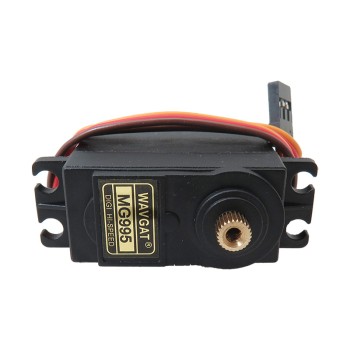

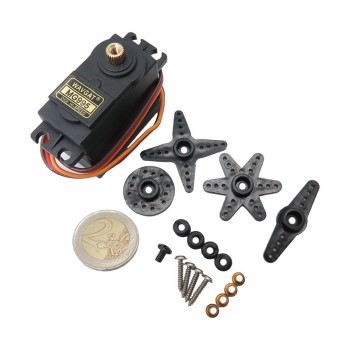

MG995 360 Degree Metal Gear Servo Motor 13KW

The digital servo motor mg995 has the highest popularity among the servo motors produced by towerpro. this servo motor has a 360-degree rotation angle and possesses exceptional torque for building model airplanes, quadcopters, and robotic arms. the mg995 metal gear servo operates at a voltage of 4.8 to 6 volts, providing a torque of 9.4 kg/cm at 4.8 volts and 13 kg/cm at an operating voltage of 6 volts. the mg995 metal gear servo motor has a power of 13 kilos and a 360-degree rotation capability, along with high durability.

Application of MG995 360 degree metal gear servo motor 13KW:

1. robotics
2. unmanned aerial vehicle

Specifications of MG995 digital servo motor:

1. model: towerpro mg995
2. type of motor: servo

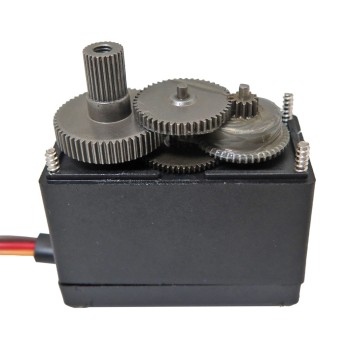

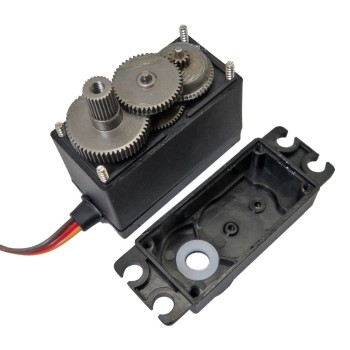

3. metal gear
4. plastic body
5. operating voltage: 4.6 to 7.2 volts
6. operating current: 100 ma
7. dimensions:  40.7*19.7*42.9mm
8. no-load speed: 4.8v 0.17sec/60°; 6v 0.13sec/60°

Documents:

datasheet for motor mg995 360
