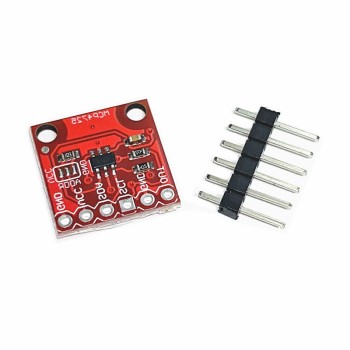

MCP4725 12-bit Digital-to-Analog Converter

The Digital-to-Analog Converter Module MCP4725 is used to convert digital signals into analog signals, commonly referred to as a DAC. This module features a 12-bit resolution, allowing the generation of 4096 distinct voltage levels, making it suitable for applications that require high-precision analog signal output. The module receives data from a microcontroller or an Arduino board via I2C, and its operating voltage ranges from 2.7 V to 5.5 V.

The MCP4725 12-bit Digital-to-Analog Converter includes built-in EEPROM with a 12-bit resolution and a stability time of 6 µs. If you plan to use multiple MCP4725 modules on a single I2C bus, the pull-up resistors can be disabled. Controlled through the MCP4725 Converter Chip Module’s I2C interface, this module allows the production of analog signals, such as sine waves, directly from digital sources like Arduino. For a better understanding of its operation, you can watch an introduction and tutorial video on the MCP4725 module.

Educational Note:
Offset in analog signals refers to a constant voltage shift relative to zero. In many electronic circuits, it is necessary to adjust the analog signal to a specific voltage level to be compatible with other inputs, such as ADCs, amplifiers, or microcontrollers. The MCP4725 12-bit Digital-to-Analog Converter is ideal for applying offsets to analog signals and is particularly useful in projects requiring signal amplitude adjustments.

For example, if you generate a sine wave ranging from 0 V to 5 V, but the target system only accepts signals between 2 V and 4 V, you can use the MCP4725 Converter Chip Module to add a positive offset. This ensures the waveform fits within the desired range, improving compatibility and protecting sensitive inputs.

Offsets can occur in three ways: hardware offset, software offset, and dynamic offset. Hardware offsets are caused by deviations in devices like ADCs or amplifiers and are usually corrected via software. Software offsets are applied during signal generation or voltage adjustment, often by adding a fixed value in microcontroller code. Dynamic offsets result from environmental changes, such as temperature or power fluctuations, requiring periodic real-time measurement and correction.

Applications of the DAC module

1. Offset adjustment
2. Sensor calibration
3. Closed-loop servo motor control
4. Low-power portable devices
5. Data analysis systems

Specifications of the MCP4725 converter

1. 12-bit resolution
2. Onboard EEPROM
3. Two operating modes: normal and low-power
4. Stability time: 6 µs
5. Supply voltage: 2.7 V to 5.5 V
6. I2C communication interface
7. Low power consumption

Documents:

MCP4725 Datasheet
