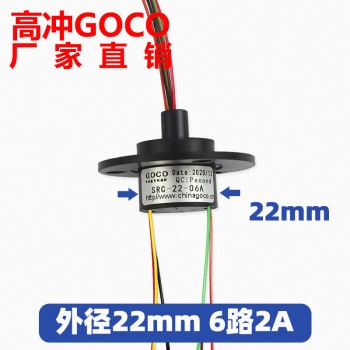

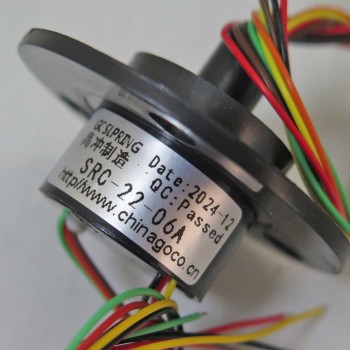

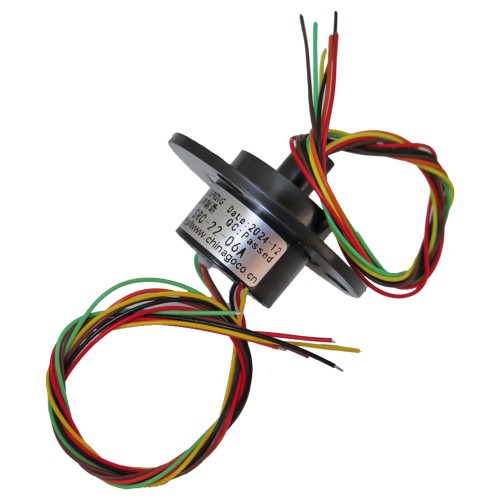

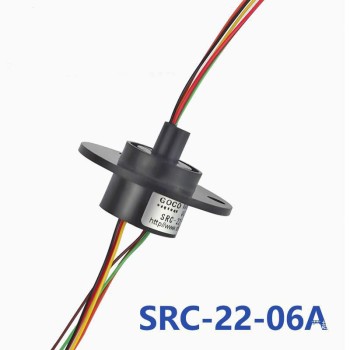

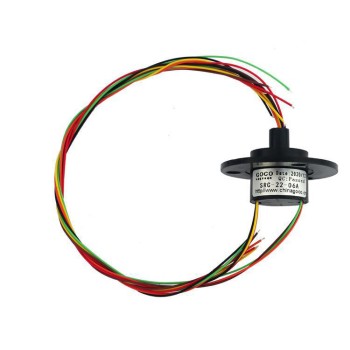

MC190 Slip Ring [6 Wire] [2A]

MC190 Slip Ring [6 Wire] [2A]
Click image for Gallery
  • Product Code:SQ5402
  • Availability: 10000
  • $6.20
  •
  • Ex Tax:$6.20
+
-


Tags: Wire Ring, 2A Wire, Slip Ring, 6Wire Slip Ring, Electrical Rotary Joint

Description:
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. Also called a rotary electrical joint, collector or electric swivel, a slip ring can be used in any electromechanical system that requires unrestrained, intermittent or continuous rotation while transmitting power and/or data. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
MC190 is economical 6 wires slip ring with compact OD 22mm, signal(2A)/ring. MC190 is standard capsule slip rings with gold-gold contacts, which ensured the stability of the signal transmission and working life, mainly used for civilian, commercial areas.

Features:
Max speed: 250rpm
Housing Material: Plastics
Rated Voltage: 0 ~ 440VAC/VDC
Rated Current: 2A
Insulation Res: ≥1000MΩ/500VDC
Operating Temperature: -30℃ ~ 80℃
Operating Humidity: 0 ~ 85% RH
Outer diameter: 22mm
Life Time: >40 million Revs

Package Include:
1 x MC190 6 Wire 2A Slip Ring

Electrical Parameters
Speed 250rpm
Rated Current 2A
Rated Voltage 0 ~ 440VAC/VDC
Physical Parameters
Outer Diameter 22mm
Life Time >40 million Revs
Material Plastic (Housing Material)
Environmental Conditions and Safety
Operating Temprature -30℃ ~ 80℃
Operating humidity 0 ~ 85% RH
