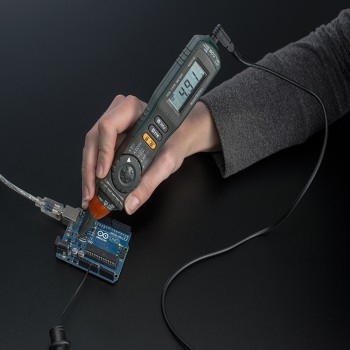

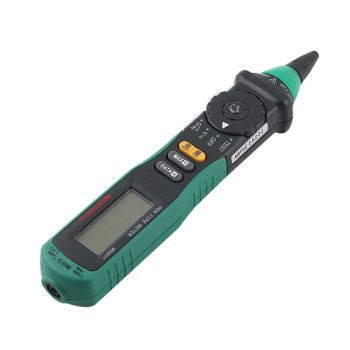

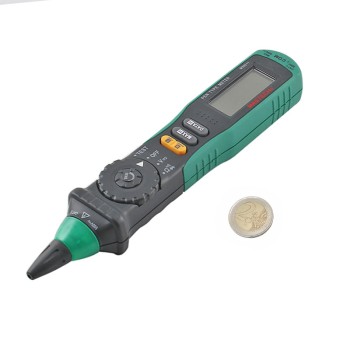

Mastech MS8211 Pen Multimeter

The Mastech MS8211 Pen Multimeter is a pen-style multimeter that automatically adjusts the range and allows you to select each option to measure the desired parameter. The Mastech MS8211 Multimeter can measure both AC and DC voltage and current with auto-ranging functionality. By setting the selector to resistance, it can measure resistance from 200 ohms to 20 megaohms.

The Mastech MS8211 Auto-Ranging Pen Multimeter is designed for ease of use and convenience, enabling tasks such as diode testing, NCV, continuity testing, data storage, and displaying the maximum value by simply connecting the black probe. The Mastech MS8211 Digital Pen Multimeter operates on a 1.5V pen battery and features an Auto-Off function to conserve energy by automatically turning off the meter after a period of inactivity.

Applications of the Mastech MS8211 Digital Pen Multimeter

1. Technicians
2. Electronic projects
3. Education and research

Specifications of the Mastech MS8211 Digital Pen Multimeter

1. Multimeter Type: Pen - Digital
2. Model: MS8211
3. DC Voltage Measurement Range: 200mV to 600V
4. AC Voltage Measurement Range: 200mV to 600V
5. DC and AC Current Measurement Range: 20mA to 200mA
6. Resistance Measurement Range: 200Ω to 20MΩ
7. Display: 2000 counts
8. Auto & Manual Ranging
9. Auto Power Off
10. Maximum Value Hold
11. Data Hold
12. Low Battery Display
13. Continuity Buzzer <50±20Ω
14. Logic Level Test
15. Retractable Tip for Safe Storage
16. Power Supply: 2×1.5V AAA Batteries
17. Product Size: 208mm x 38mm x 29mm / 8.26" x 1.5" x 1.1"
18. Product Weight: 110g / 0.24lb
19. Certificate: RoHS
20. Safety Rating: CAT II 600V

Features of the Mastech MS8211 Digital Pen Multimeter

1. Diode Test up to 1.5V
2. Continuity Test: Detects connection or disconnection
3. Data Hold: Stores measured values
4. MAX: Stores the maximum value
5. Auto-Range: Automatic range adjustment
6. Auto-Off: Automatically turns off the multimeter after a few minutes
7. NCV: Detects AC voltage under 50V without direct connection to the device

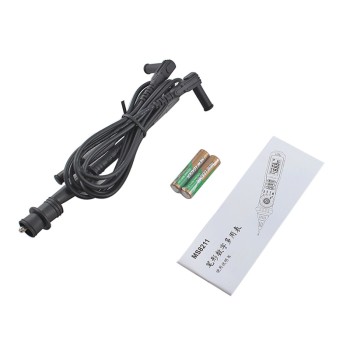

Items Included with the Mastech MS8211 Digital Pen Multimeter

1. Multimeter
2. User Manual
3. Probes
4. Battery

Documents:

Mastech MS8211 Digital Pen Multimeter Catalog
