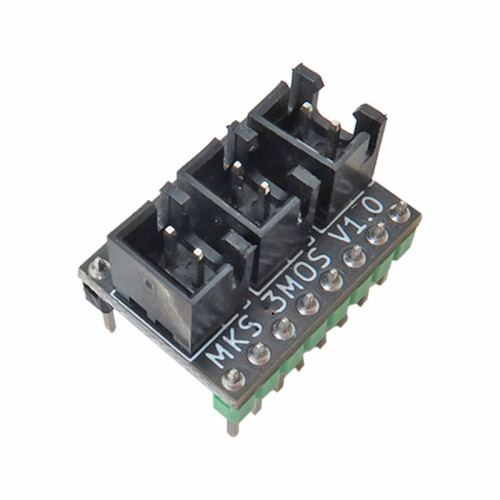

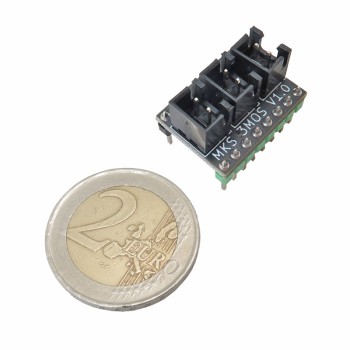

MKS 3MOS Fan Development Module

MKS 3MOS is a developer and module interface that can control its 3 outputs, and all its pins and dimensions are compatible with motor driver slots and operate as plug. this module connects with the drive slot and its file is configured. the mks 3mos fan development module is a product of makerbase and is suitable for motor drivers with 5 or more slots. its outputs are controlled through three signals: enable, step, and dir.

application of MKS 3MOS module:

specifications of the MKS 3MOS interface:

1. dimensions: 20.32 by 15.24 millimeters
2. input voltage: 12 to 24 volts dc
3. output current: less than 1 ampere
4. number of fan interfaces: 3
5. control signal:
6. fan1 uses the enable signal
7. fan2 uses the step signal
8. fan3 uses the dir signal

Documents:

MKS 3MOS schematic
