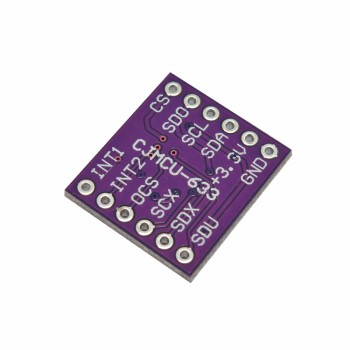

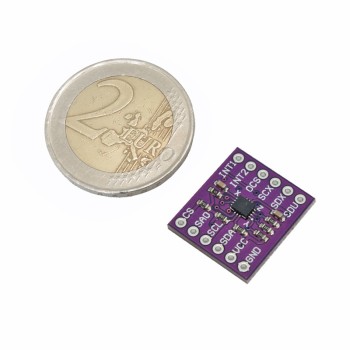

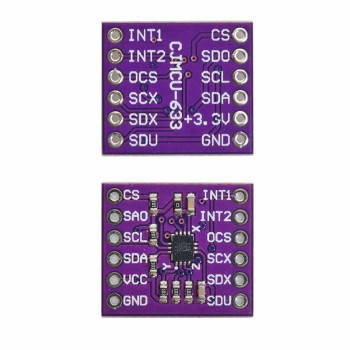

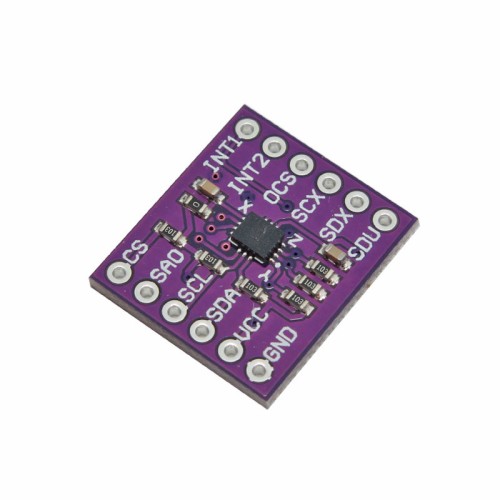

LSM6DSO 6DOF Gyroscope Module

The LSM6DSO IC is a compact, integrated system featuring a 3-DOF digital accelerometer and a 3-DOF digital gyroscope. The LSM6DSO 6DOF module offers the best motion sensing capabilities, allowing it to detect orientation and movement. This enables developers and consumers to access advanced features and capabilities, transitioning navigation from simple to both horizontal and vertical modes.

The LSM6DSO 6DOF gyroscope and accelerometer module can be used in various applications such as motion detection, activity or inactivity detection, 6-axis navigation, slow-motion detection, and wake-up alarms. The LSM6DSO gyroscope and accelerometer module easily interfaces with different hardware and sensors, and is compatible with both real and virtual operating modes.

The LSM6DSO IC is capable of detecting changes in acceleration, such as detecting falls from height, click and double-click recognition, and it supports full-scale operation. It also has up to 9KB FIFO data storage capacity for data transmission.

Applications of the LSM6DSO 6DOF module

1. Motion detection
2. Central sensor
3. Indoor navigation
4. IoT devices
5. Smart energy saving for indoor equipment
6. Motion tracking and gesture detection
7. Sensor hub
8. Smart power management for portable devices
9. Electronic Image Stabilization (EIS) and Optical Image Stabilization (OIS) for camera systems
10. Vibration monitoring and compensation

Specifications of the LSM6DSO 6DOF module

1. Power consumption: 0.55 mA in combo high-performance mode
2. Supply voltage: 1.71 V to 3.6 V
3. 9 KB FIFO data storage
4. Compact footprint: 2.5 mm x 3 mm x 0.83 mm
5. Serial interface: SPI / I²C & MIPI I3CSM
6. Independent IO supply: 1.62 V
7. "Always-on" mode with low power consumption for both accelerometer and gyroscope
8. Android compliant
9. ±2/±4/±8/±16 g full-scale for accelerometer
10. ±125/±250/±500/±1000/±2000 dps full-scale for gyroscope
11. Auxiliary SPI for OIS data output
12. Advanced pedometer, step detector, and step counter
13. Significant motion detection, tilt detection
14. Standard interrupts: free-fall, wake-up, 6D/4D orientation, click and double-click
15. Programmable Finite State Machine (FSM) for accelerometer, gyroscope, and external sensors
16. Embedded temperature sensor

Documents:

LSM6DSO IC datasheet
