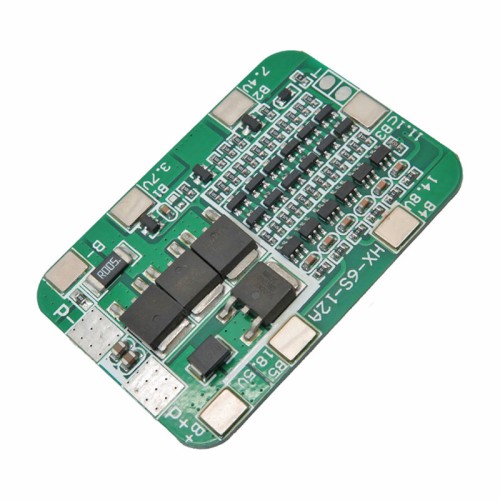

18650 and 6-cell 22.2V battery charge and discharge protection module

the lifespan and health of batteries depend on the amount and timing of their charging and discharging, and the protection module is used to control the voltage applied to the battery. the battery charging and discharging protection module is designed to keep and protect the battery within a specific voltage range and prevents excessive charging and discharging. this battery charge and discharge protection module is for a 6-cell, 22.2-volt configuration suitable for polymer and lithium 18650 batteries, providing protection for a 21.6-volt polymer battery string and a 22.2-volt lithium battery string. if the battery is fully charged, its voltage will be 25.2 volts. this module is also referred to as a charge balancer, and this model of the protection circuit is the hxyp-6s-cw15. if the temperature of the module increases during operation, attention should be paid to the voltage and current rates of the battery, and make sure to check the battery charge before connecting to the output.

application of 18650 and polymer lithium battery charge and discharge protection board:

1. massage device battery packs
2. led backup light supplies
3. electronic devices
4. streetlight battery packs
5. monitoring backup power supplies

specifications of the 6C protection board:

1. suitable for lithium and polymer batteries and similar cases
2. normal working current: 12 amps
3. maximum working current: 20 amps
4. single cell charge protection: 4.25 v dc to 4.35 v dc
5. protection current: 2 amps
6. discharge voltage: 2.5 v dc
7. charge voltage: 25.2 v dc

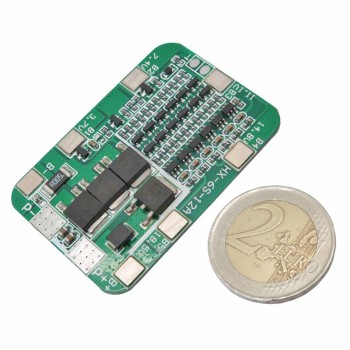

8. dimensions: 50 by 32 millimeters
9. working temperature: minus 40 to 80 degrees celsius
10. 9-millisecond delay time for detecting harmful current draw
