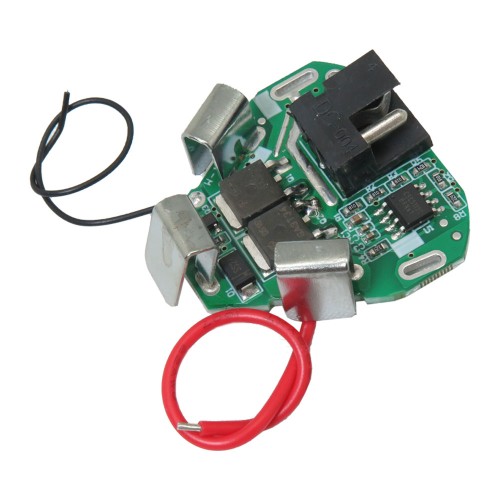

12.6V Lithium Battery Protection Board

Lithium Battery Protection Module / Battery Management System (BMS)

Protection Modules or Battery Management Systems are used to safeguard and control the charge and discharge of Lithium-Ion or Lithium-Polymer Batteries. These modules are typically categorized based on their current capacity and the number of battery cells they support.

This particular Lithium Battery Protection Board functions as a charger for single-cell lithium cobalt oxide, lithium cobalt, lithium, or lithium polymer batteries, with a maximum charging capability of 40 A. Key features include overcharge and discharge protection circuits, which prevent damage to the Lithium Battery.

The board also includes high-precision voltage detection and internal overcurrent detection. Additionally, MOSFET transistors allow the Battery Protection Board to effectively control both charging and discharging operations.

Connection Instructions:

• B+: Connect to the positive terminal of the battery
• B1: Connect to the junction between Battery 1 and Battery 2
• B2: Connect to the junction between Battery 2 and Battery 3
• B-: Connect to the negative end of the battery
• P+: Positive terminal for charging/discharging
• P-: Negative terminal for charging/discharging

This Lithium Battery Protection Module ensures safe operation while maximizing the performance and lifespan of your Lithium Battery system.

Applications of the Lithium Battery Protection Board

1. 12V Screwdrivers
2. Automobiles
3. Boats

Specifications of the rechargeable drill charge board

1. Maximum Working Current: 8 A
2. Peak Transient Current: 40 A ± 5 A
3. Overcharge Voltage: 4.25 V ± 0.05 V
4. Over-Discharge Voltage: 2.5 V ± 0.05 V
5. Charging Voltage: 12.6–13 V
6. Maximum Current Capacity: 40 A
7. Operating Temperature: -40 °C to 50 °C
8. Storage Temperature: -40 °C to 80 °C
9. Charging Current: 1–2 A
10. Short-Circuit Protection: Protectable, can be reset for repair
11. Quiescent Current: 30 µA
12. Dimensions: 36 × 33.5 × 12 mm
13. Weight: 8 g
