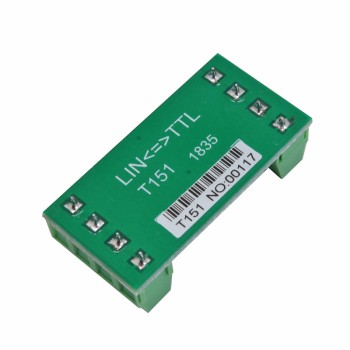

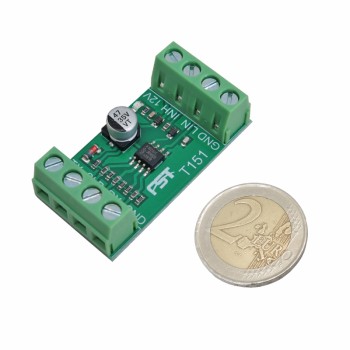

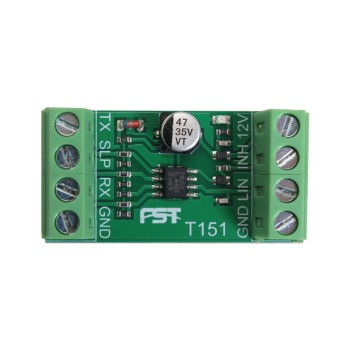

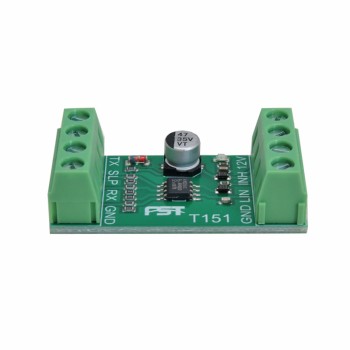

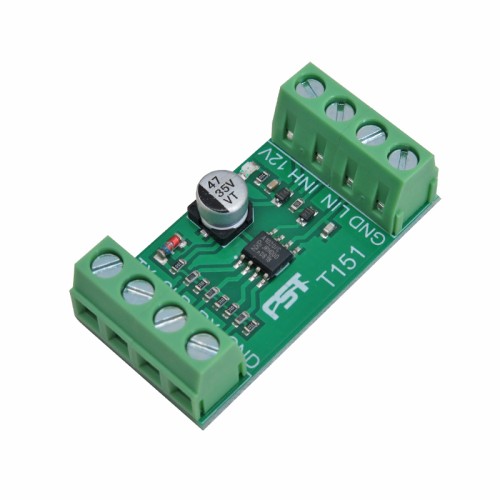

TTL to K LIN serial conversion module TJA1020 chip

the ttl to k lin converter is just a module based on the tja1020 chip and is not used for analyzing software protocol conversions. by connecting the module to a computer, the computer can receive data from the output, but if you want to communicate with your slave device as a host, you cannot access it. the computer port cannot output data. the module features a green power indicator, which lights up after being powered on. the measured baud rate of the module can reach up to 57600 bps. it is recommended that the maximum operating frequency be less than 20 kilobits per second.

application of k lin to TTL converter module:

1. product chip: tja1020
2. operating voltage: 12 volt fixed
3. operating temperature range: -25℃~85℃
4. operating humidity range: 5%~95%rh
5. module dimensions: 43*22.5*14.5mm

Documents:

tja1020 chip datasheet
