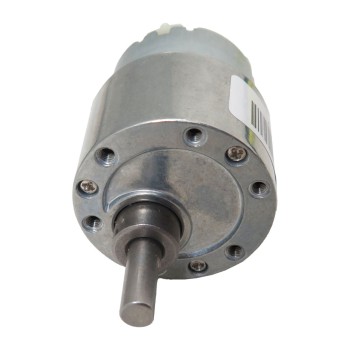

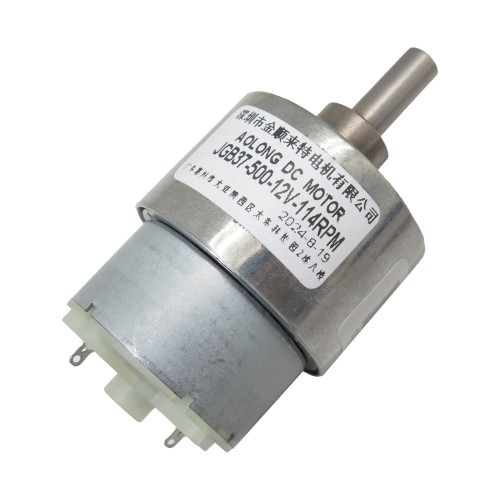

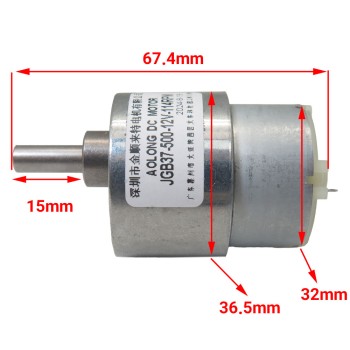

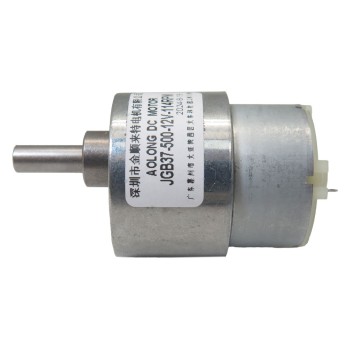

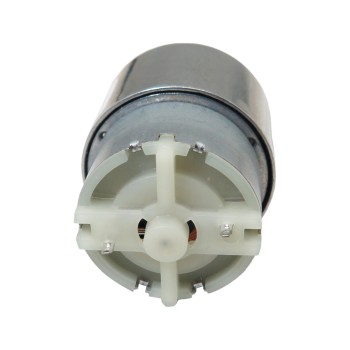

ASLONG JGB37-520 12V DC Worm Gear Motor

ASLONG JGB37-520 12V DC Worm Gear Motor
Click image for Gallery
  • Product Code:SQ2347
  • Availability: 990
  • $6.15
  •
  • Ex Tax:$6.15
This product has a minimum quantity of 2
+
-


Tags: 12V DC Motor, Gear Motor, Reduction Gearbox, Robot Motor, Motor Encoder, Metal Gear Motor

Description
This is a low speed and high torque 12V DC motor with gearbox. DC motors are the most common type of motors used in robotics. DC motors have various shapes and sizes. They are categorized into 9 types: permanent magnet iron core, permanent magnet ironless rotor, permanent magnet brushless, wound field series connected, wound field shunt connected, wound field compound connected, variable reluctance stepper, permanent magnet stepper, and hybrid stepper motors.
DC motors usually have a high speed and consequently low torque. For using them in most applications such as robotic applications, these aspects should be improved. Therefore, gearboxes are made for this purpose. By connecting the shaft of a DC motor to a geartrain, the output rotation will be slower, but the output torque that the motor delivers will be significantly higher. DC motors that assembled with gear box are called as Gearhead DC motors, and they are most suitable motors for building many hobby robots.

Features:
Rated Voltage: DC 12V
No load speed: 319rpm
No Load Current: 100mA
Load torque: 0.28kg.Cm
Load Speed: 255RPM
Load Current: 170mA
Load output: 0.8w
Stall torque: 1.1kg.Cm
Stall Current: 1.2kg.Cm
Ratio: 18.8
Shaft diameter: 6mm

Package Include:
1 x DC Motor

Motor Specifications
Motor voltage DC 12V
No Load Current 50mA
No-Load Speed 7rpm
Shaft Diameter 6mm
Torque 12kg.cm ( Load )
Load Current 80mA
Physical Parameters
Weight 243g
